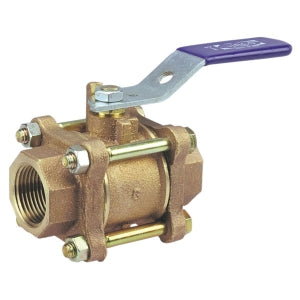

NIBCO NL99505 T-595-Y 3-Piece Ball Valve 600 psi (3/8 in) Replacement MPN

Product Description

The NIBCO NL99505 ball valve is a durable, three-piece valve designed for reliable use in a range of applications. This valve has a nominal diameter of three-eighths of an inch and features female national pipe threads. It can handle a maximum pressure of six hundred psi and a temperature rating of up to four hundred degrees Fahrenheit.

• Full port design for maximum flow capacity.
• Blowout-proof stem for enhanced safety.
• Suitable for hot and cold water, various gas applications, and compressed air.

Product Highlights

This valve provides a bubble-tight seal and ease of operation with a standard lever actuator. Ideal for use in HVAC and plumbing applications, it is designed for both isolation and throttling.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923686541

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• End Style: FNPT
• Inlet to Outlet Length: 2.5 inches
• Media: Air/Gas/Water
• Nominal Size: 3/8 inches
• Orifice Size: 0.38 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-595-Y
• Softgoods Material: PTFE/Fluorocarbon Rubber
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 1.69 inches
• Trim Material: Silicon Bronze Stem
• Type: 3-Piece
