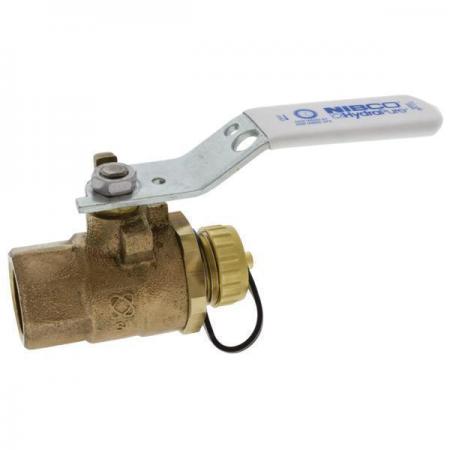

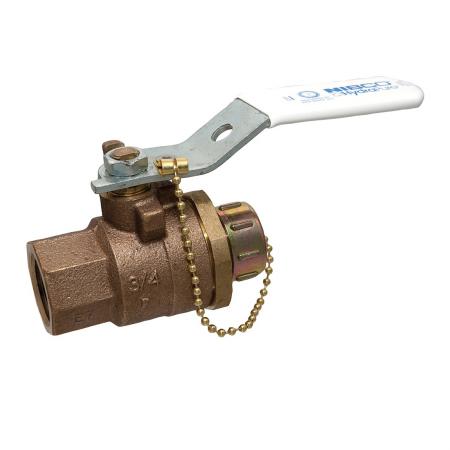

NIBCO NL978X8 T-585-66-LF-HC 3/4 in DZR Silicon Bronze Full Port NPT x Hose 600# Ball Valve

Product Description

NIBCO NL978X8 T-585-66-LF-HC is a two-piece ball valve designed for high performance. This valve features a three-quarter inch nominal size with a threaded x hose connection, ensuring a reliable fit and easy installation. The valve has a pressure rating of six hundred psi, making it suitable for various water applications.

• Lead-free construction for safe use
• Dezincification resistant for durability
• Full port design for maximum flow

Product Highlights

Ideal for plumbing and HVAC use, the NIBCO NL978X8 ball valve offers a stainless steel ball with enhanced control. It effectively manages water flow in residential and commercial systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NL978X8

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Stainless Steel
• Body Material: Bronze
• End Style: Threaded x Hose
• Inlet to Outlet Length: 3.14 in
• Media: Water
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-585-66-LF-HC
• Softgoods Material: EPDM/PTFE
• Top to Inlet Center: 2.28 in
• Trim Material: Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
