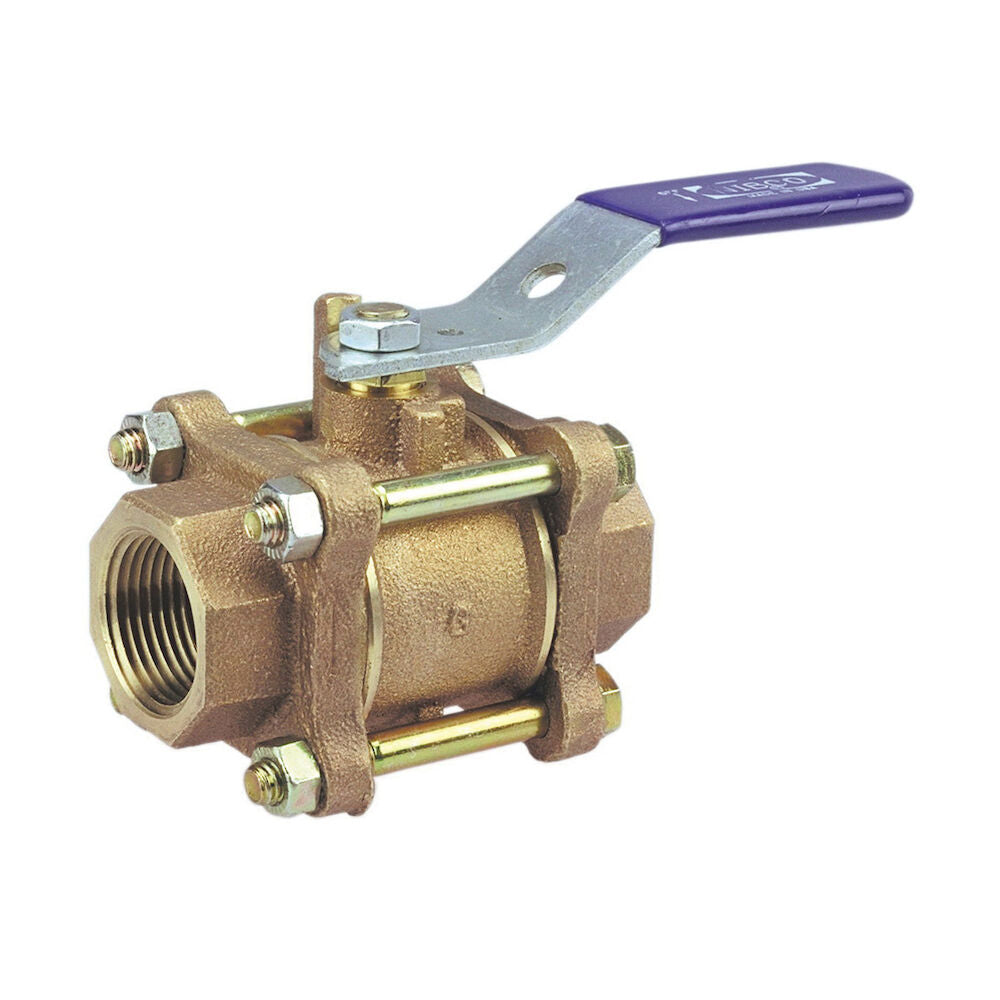

NIBCO NL9750E T-590-Y 3-Piece Ball Valve 2-1/2 in FNPT

Product Description

The NIBCO NL9750E is a three-piece ball valve designed for reliable shut-off and performance. This model operates under a pressure rating of six hundred psi and offers versatility for various applications including hot and cold water, gas, and air.

• Pressure rating of six hundred psi
• Three-piece design for easy maintenance
• Ideal for multiple media including air, gas, and water

Product Highlights

This valve features a bronze body with chrome plated brass ball and is repairable inline for convenience. The standard lever actuator allows for a quarter-turn operation, making it user-friendly in different setups.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 3-Piece

Technical Specifications

• Pressure Rating: 600 psi
• Nominal Size: 2-1/2 in
• Orifice Size: 2 in
• Temperature Rating: 400 deg F
• Body Material: Bronze
• Ball Material: Chrome Plated Brass
• End Style: FNPT
• Inlet to Outlet Length: 6.16 in
