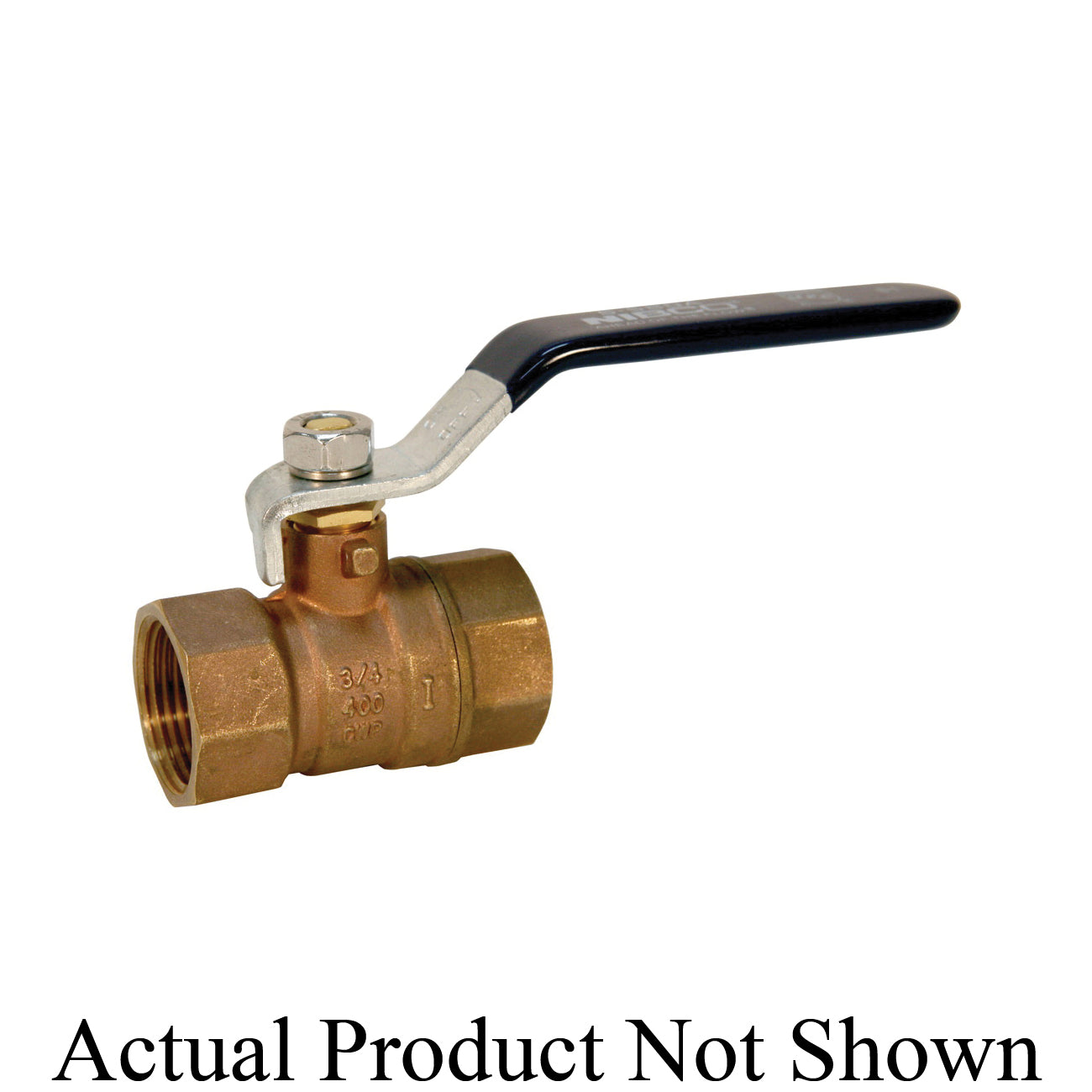

NIBCO NL9600D 2-Piece Ball Valve 2 in Nominal FNPT Standard Port

Product Description

The NIBCO bronze Ball Valve, model NL9600D, provides efficient operation with a quarter-turn opening. This valve is designed with two-piece construction and features threaded end connections for straightforward installation. It is suitable for both commercial and residential usage, affirming its versatility.

• Pressure rating of 400 psi
• Compatible media includes gas and water
• Constructed from polished chrome brass

Product Highlights

NIBCO valves are a reliable choice for demanding applications, supported by a two-year limited warranty.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL9600D

Technical Specifications

• Type: 2-Piece
• Media: Gas/Water
• Nominal Size: 2 in
• End Style: FNPT
• Orifice Size: 1.46 in
• Inlet to Outlet Length: 3.73 in
• Top to Inlet Center: 2.95 in
• Pressure Rating: 400 psi
• Ball Material: Polished Chrome Brass
• Body Material: Brass
• Trim Material: Brass Stem
• Softgoods Material: Fluorocarbon/PTFE
• Actuator Type: Standard Lever Handle
