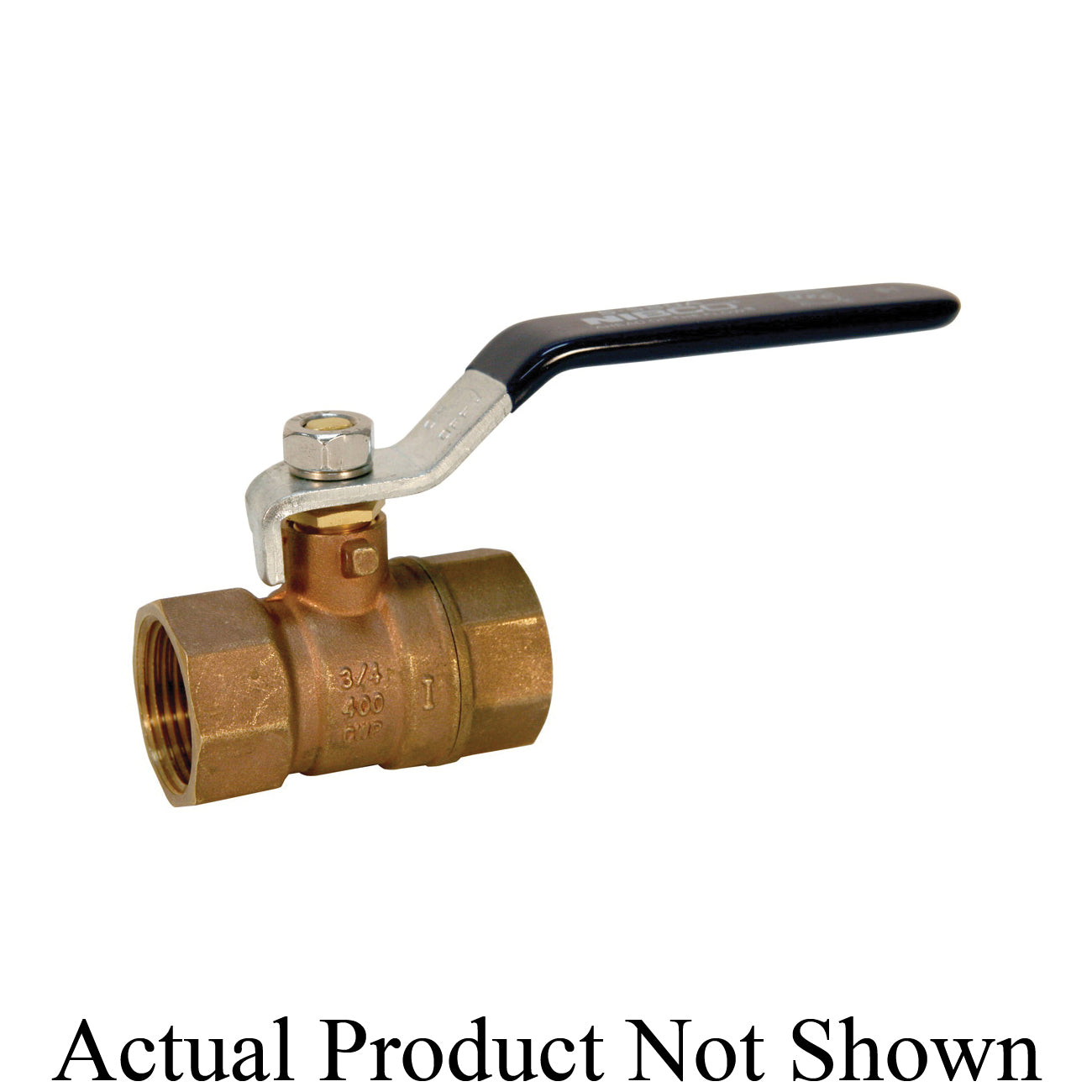

Nibco NL9600C 2-Piece Ball Valve 1-1/2 in Nominal FNPT End Style Brass Body Standard Port

Product Description

The NIBCO NL9600C is a two-piece ball valve designed for reliable performance in various applications. This ball valve features FNPT end connections, allowing for a secure and leak-free installation. The polished chrome brass ball provides durability and ease of movement with a quarter-turn operation.

• Pressure rating up to 400 psi
• Suitable for gas and water media
• Includes a standard lever handle for easy operation

Product Highlights

This valve meets industry standards and is suitable for both commercial and residential uses.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Model: T-580-A

Technical Specifications

• Type: 2-Piece
• Media: Gas/Water
• Nominal Size: 1-1/2 in
• Orifice Size: 1.18 in
• End Style: FNPT
• Port Type: Standard
• Pressure Rating: 400 psi
• Inlet to Outlet Length: 3.4 in
• Top to Inlet Center: 2.59 in
• Ball Material: Polished Chrome Brass
• Body Material: Brass
• Softgoods Material: Fluorocarbon/PTFE
• Trim Material: Brass Stem
• Actuator Type: Standard Lever Handle
• Domestic/Import: Import
