NIBCO NL9600A T-580-A 1 in Forged Brass Standard Port NPT 400# Ball Valve

Product Description

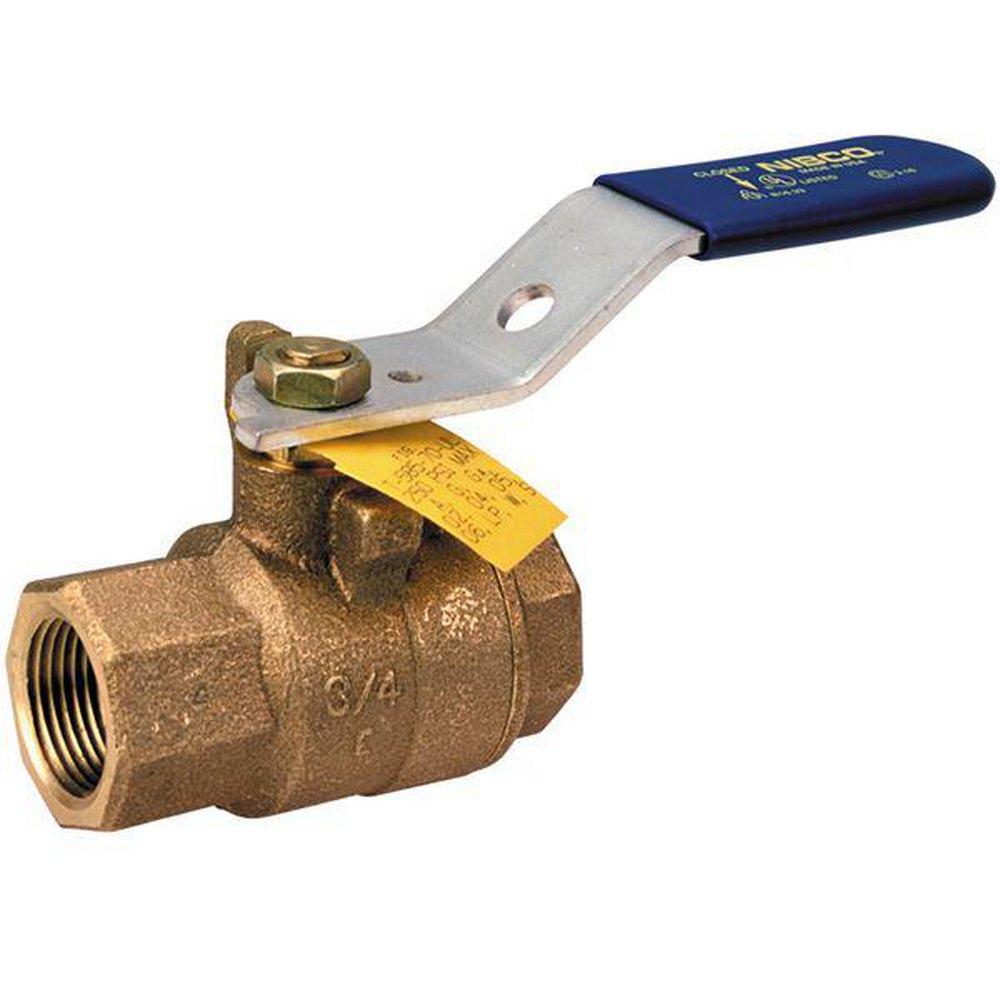

The NIBCO T-580-A ball valve, designated with MPN NL9600A, is a reliable and efficient brass valve designed for water and gas applications. This two-piece valve features a standard port and is rated for a pressure of four hundred psi. It is ideal for both industrial and residential use. The valve provides quick and easy quarter-turn operation for on/off control.

• Standard port design for optimal flow
• Compatible with gas and water
• High-pressure rating of 400 psi

Product Highlights

This NIBCO ball valve is constructed with a polished chrome brass ball and has a blowout-proof stem design that adds to its durability and safety.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NL9600A

Technical Specifications

• Connection Size: 1 inch
• Connection Type: FNPT
• Pressure Rating: 400 psi CWP Non-Shock
• Material: Brass
• Ball Material: Chrome-Plated Brass
• Seat Material: PTFE
• Dimensions: 2.76 inches length
• Nominal Size: 1 inch
