NIBCO NL95XHF T585-66-LF 3 THRD FULL PORT SS TRIM

Product Description

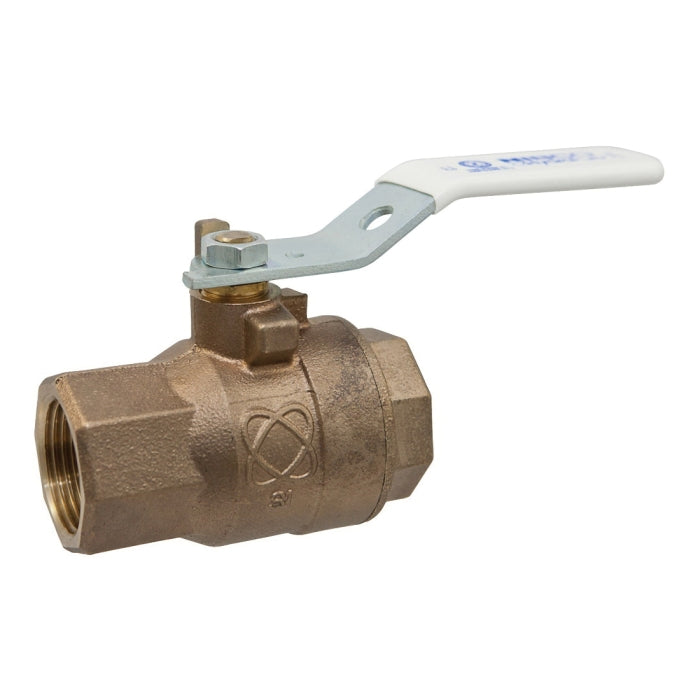

The NIBCO NL95XHF is a bronze ball valve designed for various industrial and residential applications. This valve features a two-piece, quarter-turn operation, allowing quick opening and closing. The standard lever handle ensures ease of use, and the threaded FNPT ends facilitate straightforward installation.

• Pressure rating of six hundred psi
• Constructed with silicon bronze and stainless steel
• Full port design for maximum flow capacity

Product Highlights

This valve is suited for hot water media, making it ideal for diverse settings, including commercial environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Nominal Size: 3 inches

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: 316 Stainless Steel
• Body Material: Silicon Bronze
• Dimensions: 11.31 inches L x 7.12 inches W x 5.1 inches H
• End Style: FNPT
• Inlet to Outlet Length: 6.5 inches
• Media: Hot Water
• Orifice Size: 2.95 inches
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-585-66-LF
• Temperature Rating: 300 degrees F
• Softgoods Material: PTFE
• Top to Inlet Center: 4.65 inches
• Trim Material: PTFE/316 Stainless Steel
