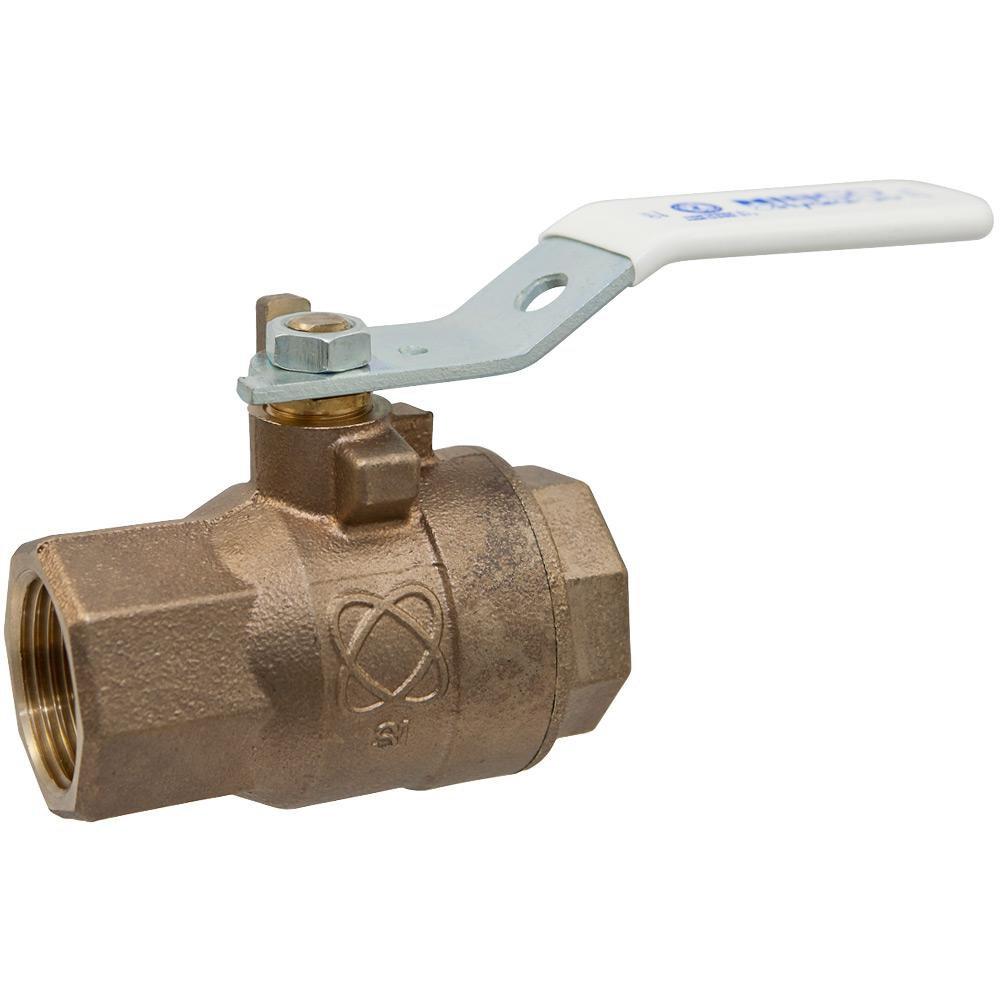

NIBCO NL95XHE 2-1/2 in. Silicon Bronze Full Port FIPT 600# Ball Valve

Product Description

The NIBCO NL95XHE is a two-piece quarter-turn ball valve made from silicon bronze. This valve is designed for full port flow and has a female National Pipe Tapered (FNPT) end connection. The maximum pressure rating is six hundred psi, and it can operate at temperatures up to three hundred degrees Fahrenheit. Its locking lever handle allows for easy operation, making it suitable for various applications.

• Full port design for maximum flow
• Made with silicon bronze and stainless steel
• Rated for water applications

Product Highlights

This NIBCO ball valve is ideal for residential and commercial plumbing systems. It is durable and easy to install, offering reliable performance.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL95XHE

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Dimensions: 2.09 in diameter
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 6 in
• Media: Water
• Nominal Size: 2-1/2 in
• Orifice Size: 2-1/2 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-585-66-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 degrees Fahrenheit
• Top to Inlet Center: 4.4 in
• Trim Material: 316 Stainless Steel Stem
• Manufacturer: NIBCO INC
