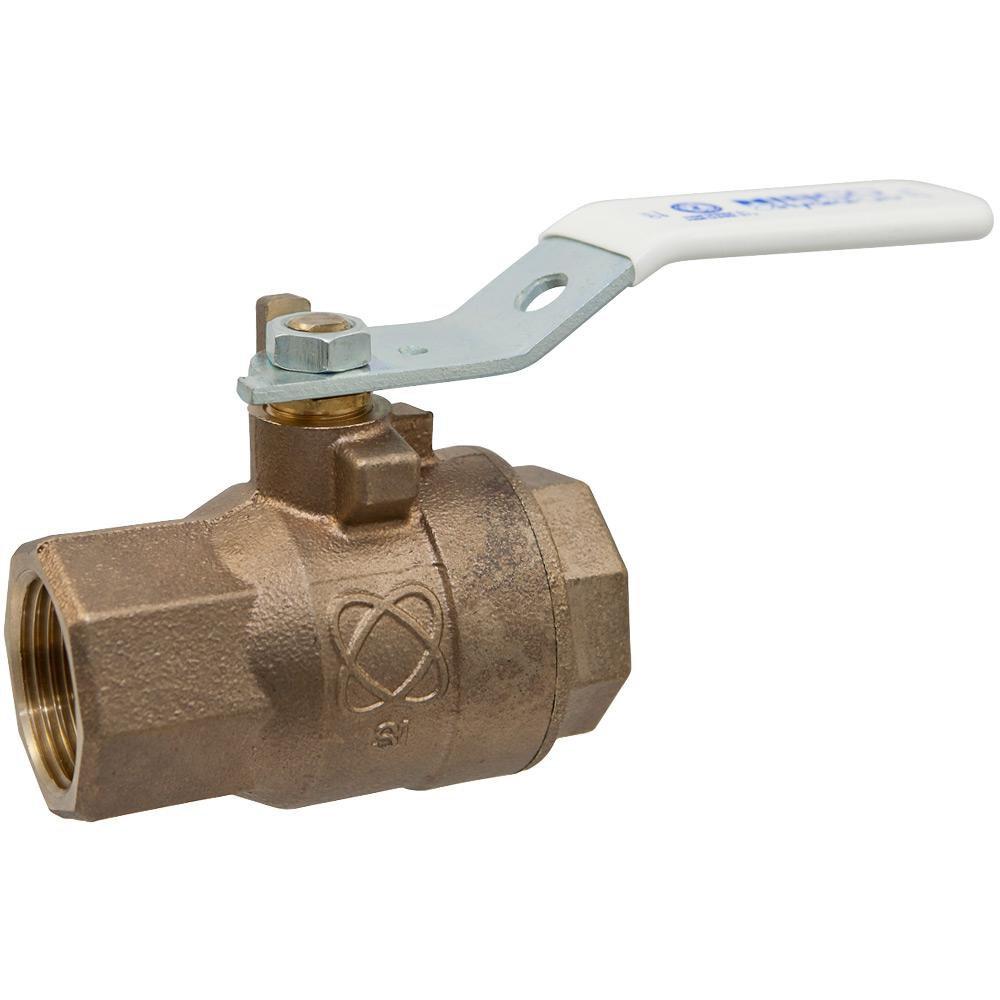

NIBCO NL95XHD T-585-66-LF 2 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL95XHD is a 2-piece DZR silicon bronze ball valve featuring a full port design, rated for six hundred psi. This valve allows bubble-tight shutoff and is suitable for applications that deliver water for human consumption. Designed for easy installation, it includes FNPT ends and reinforced PTFE seat rings. The ball valve operates quickly with a quarter-turn handle, making it efficient for both residential and commercial plumbing systems.

• Lead-free silicon bronze body
• Temperature rating of three hundred degrees Fahrenheit
• Blowout-proof stem and stainless steel trim

Product Highlights

The NIBCO NL95XHD ball valve offers reliability and safety for water systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL95XHD

Technical Specifications

• Type: 2-Piece
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Pressure Rating: 600 psi
• Temperature Rating: 300 degrees Fahrenheit
• Nominal Size: 2 inches
• Port Type: Full
• End Style: FNPT
• Inlet to Outlet Length: 4.8 inches
