Product Description

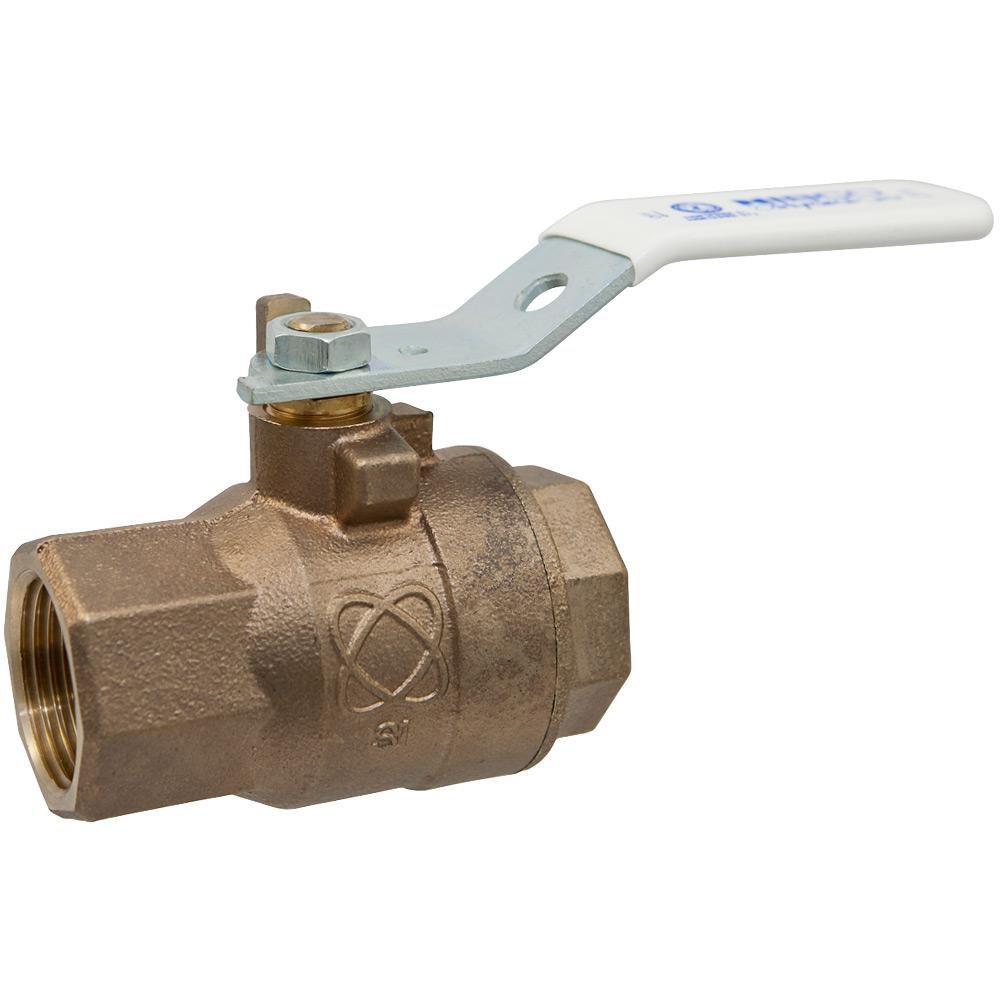

The NIBCO NL95XHB is a two-piece ball valve designed for efficient water flow control. It features a full port design with a nominal size of one and a quarter inches. This ball valve operates at a pressure rating of 600 psi, making it suitable for residential and commercial applications. The silicon bronze body ensures durability and resistance to dezincification, while the reinforced PTFE seat rings enhance sealing performance.
- Lead-free silicon performance bronze construction
- Easy installation with FNPT threaded ends
- Quarter-turn operation for straightforward use
Product Highlights
This valve is ideal for applications that deliver water for human consumption.
Product Information
Standard Information
-
Brand: NIBCO
-
MPN: NL95XHB
Technical Specifications
-
Type: 2-Piece
-
Body Material: Silicon Bronze
-
Ball Material: Stainless Steel
-
Pressure Rating: 600 psi
-
Temperature Rating: 300 degrees F
-
Nominal Size: 1-1/4 in
-
Orifice Size: 1-1/4 in
-
Inlet to Outlet Length: 3-3/4 in
