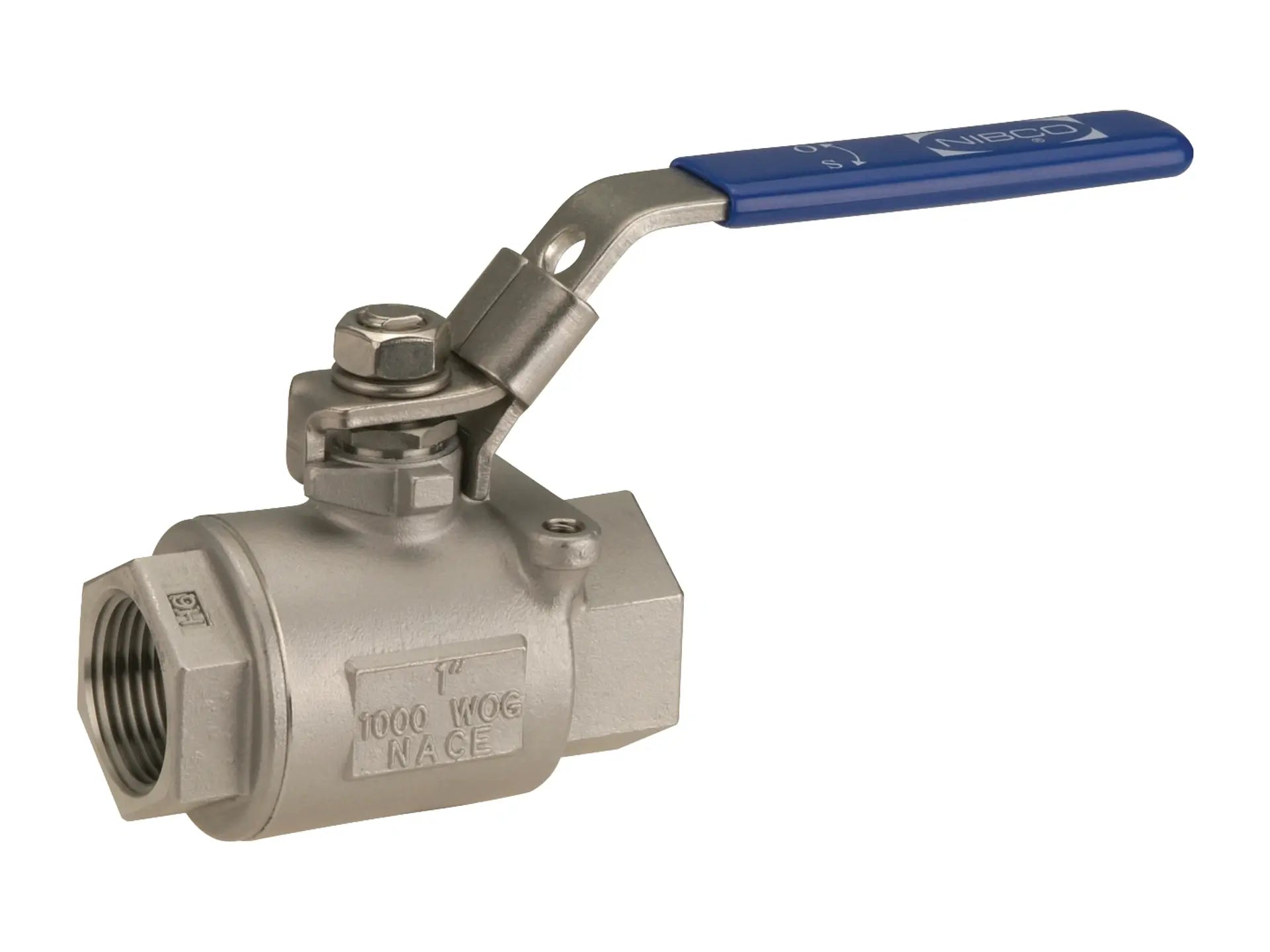

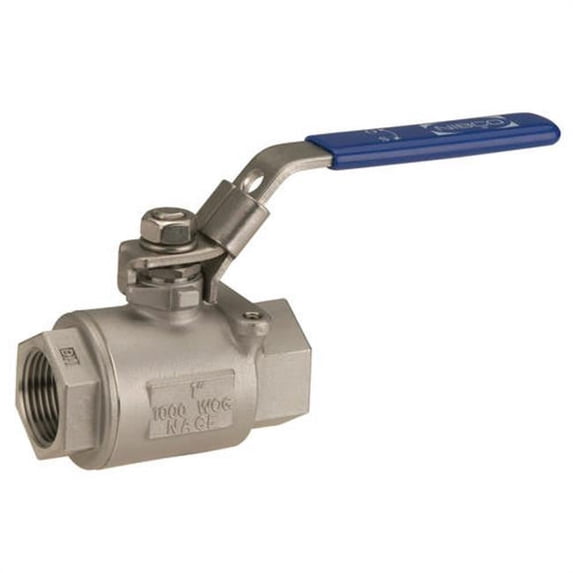

Nibco NL95X06 T-585-S6-R-66-LL Two-Piece Stainless Steel Ball Valve Full Port

Product Description

The NIBCO NL95X06 ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE seat ring and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. This valve features threaded ends for easy installation.

• Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
• Maximum temperature rating 400 F
• Full port

Product Highlights

This two-piece ball valve may be used on hot/cold water and HVAC. Features a standard lockable lever handle for security and a cast mounting pad for actuation purposes.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL95X06
• Country of Origin: TW

Technical Specifications

• UPC Code: 039923797865
• Type: Ball Valve
• Valve Size: 1/2
• Connection Type: T -- Female NPT Thread (FIPT)
• Seal Material: RPTFE (Reinforced)
• Seat Material: RPTFE (Reinforced)
• Stem Material: SS - Stainless Steel
• Ball Material: SS - Stainless Steel
• Body Material: Stainless Steel
• Cv Coefficient: 15
• Valve Operator: CS Locking Lever Handle
• Description: T585S6R66LL 1/2 THD FP BV 2PT MTG LL SS
• Turns/Operation: Quarter-Turn
• Manufacturer: NIBCO
• Part Number: NL95X06
• Model: T-585-S6R-66-LL
• Series: T-585-S6-R-66-LL
• Type of Valve: Ball
• Nominal Pipe Size: 1/2"
• Material: Stainless Steel
• Ball Body Type: Two-Piece
• Ball Operator: CS Locking Lever Handle
• Ball Port Style: Full Port
• Ball Stem Material: SS - Stainless Steel
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Pressure Rating (CWP): 1000 psi/69 Bar CWP
• Potable Water Code: LL Compliant not used potable
• Length: 5.11"
• Width: 2.93"
• Height: 1.26"
• Size/Diameter: 1/2 in
