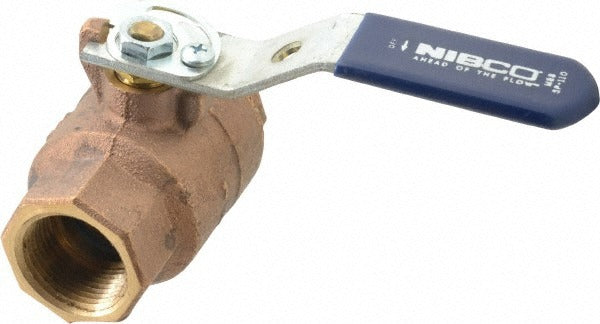

Nibco NL95I0A Ball Valve 1 Inch Full Port Fnpt Bronze

Product Description

The NIBCO NL95I0A is a standard manual ball valve designed for shutoff and flow control in plumbing, hydronic, and mechanical piping systems. Built with a bronze body and bronze trim, this 1-inch full-port valve accepts female NPT connections on both ends and is operated by a lever handle with a memory stop for repeatable positioning. The full-port design minimizes pressure drop across the valve, making it well-suited for applications where flow restriction must be kept to a minimum. The seat material is reinforced PTFE, which provides chemical resistance and a reliable seal across a broad range of service conditions. Licensed plumbers and mechanical contractors are the typical installers.

This valve is used in residential and light commercial plumbing, hydronic heating and cooling distribution, compressed air lines, and general water service piping. The FNPT x FNPT end connections make it compatible with standard threaded pipe and fittings. The lever handle with memory stop allows a technician to return the valve to a preset open or closed position without guesswork, which is useful in systems that are cycled regularly or where partial-flow settings are needed. The two-piece body construction simplifies field installation in tight spaces.

Key Features

• Full-port design for minimal pressure drop and unrestricted flow
• Bronze body and bronze trim for corrosion resistance in water and hydronic service
• Reinforced PTFE seat material for chemical resistance and long-term sealing
• Lever handle with memory stop for repeatable valve positioning
• FNPT x FNPT end connections for standard threaded pipe assembly
• Two-piece body construction for straightforward installation and serviceability

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-inch threaded piping systems in residential and commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Depressurize and drain the line before removing any existing valve or making threaded connections. Apply an appropriate thread sealant or PTFE tape to all male NPT threads before assembly. Do not overtighten threaded connections, as this can crack fittings or distort the valve body.
