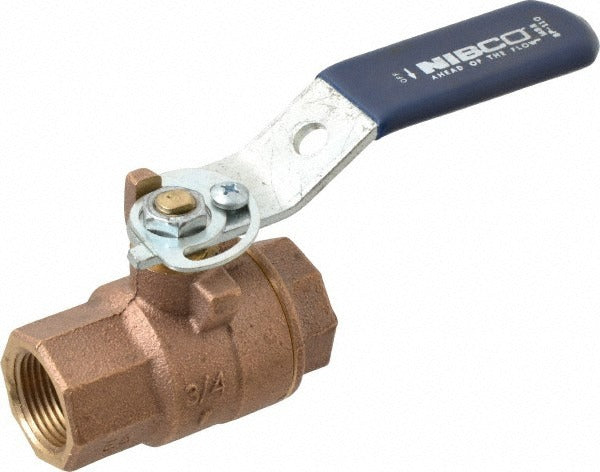

Nibco NL95I08 Ball Valve 3/4 Inch Full Port Bronze 600 Psi

Product Description

The NIBCO NL95I08 is a standard 2-piece manual ball valve designed for 3/4 inch pipe in commercial and residential plumbing and mechanical systems. The valve features a full port design, meaning the bore diameter matches the pipe inside diameter for unrestricted flow. The bronze body and bronze trim deliver corrosion resistance suited to water, hydronic, and light industrial service. A lever handle with memory stop allows fast quarter-turn shutoff and repeatable positioning. Rated to 600 psi, this valve handles high-pressure service lines where reliable manual isolation is required. Licensed plumbers and mechanical contractors are the primary installers.

The NL95I08 is applied in residential and light commercial water supply lines, hydronic heating and cooling systems, and general-purpose shut-off applications where bronze construction is specified. The FNPT x FNPT end connections accept standard threaded pipe on both sides, making it a straightforward drop-in for most threaded piping systems. The full port configuration is preferred where flow restriction must be minimized, such as in boiler feeds, pump inlets, and branch isolation service.

Key Features

• Full port design allows unrestricted flow equal to pipe bore
• Bronze body and trim rated for water and hydronic service
• 600 psi maximum working pressure for high-pressure line applications
• FNPT x FNPT end connections for standard threaded pipe installation
• Lever handle with memory stop for repeatable quarter-turn operation
• Reinforced PTFE seat material for long-term seal integrity
• 2-piece body construction facilitates field serviceability

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/4 inch threaded pipe systems requiring bronze construction and full port flow capacity.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC and local plumbing codes. Shut off and depressurize the system completely before cutting into any live line. Apply thread sealant or PTFE tape to all male threads before assembly and tighten connections to manufacturer-standard make-up turns without over-torquing bronze fittings. Confirm flow direction and pressure rating compatibility with the system before returning the line to service.
