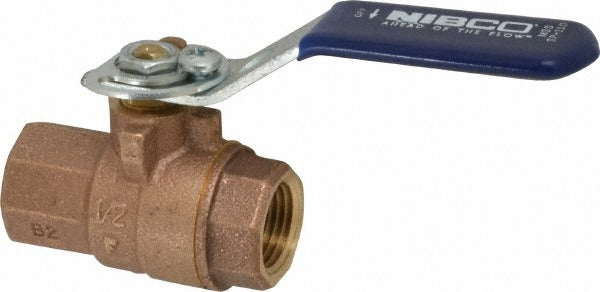

Nibco NL95I06 Ball Valve 1/2 Inch Fnpt Full Port 600 Psi

Product Description

The NIBCO NL95I06 is a 2-piece standard manual ball valve designed for use in plumbing, HVAC, and industrial piping systems where reliable on/off flow control is required. Built with a bronze body and bronze trim, this valve accepts 1/2-inch female NPT (FNPT) connections on both ends and delivers a full-port flow path to minimize pressure drop. A lever handle with memory stop allows for quick, positive shutoff and consistent repositioning. Rated at 600 psi maximum working pressure, the NL95I06 is suited for demanding service conditions encountered in commercial and residential installations. The reinforced PTFE seat provides durable, low-friction operation across a wide range of compatible fluids.

The NL95I06 is used in residential and light commercial plumbing and hydronic heating systems, as well as general industrial piping applications. Its FNPT x FNPT end connections make it compatible with standard threaded pipe assemblies. Licensed plumbers, pipefitters, and HVAC technicians install this valve at branch takeoffs, isolation points, equipment service connections, and anywhere a compact, full-port manual shutoff is needed in a 1/2-inch threaded line.

Key Features

• Full-port design minimizes flow restriction and pressure drop
• Bronze body and trim rated for 600 psi maximum working pressure
• FNPT x FNPT end connections fit standard 1/2-inch threaded pipe
• Lever handle with memory stop allows repeatable positioning and fast shutoff
• Reinforced PTFE seat provides low-friction, long-service-life sealing
• 2-piece body construction simplifies field service and inspection

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 1/2-inch threaded piping systems requiring a full-port bronze valve with FNPT x FNPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME B31 piping standards. Isolate and depressurize the system fully before removing any existing valve or installing this valve into a live line. Apply thread sealant or PTFE tape to male pipe threads before making up the connection. Do not exceed the rated working pressure of 600 psi for the installed system.
