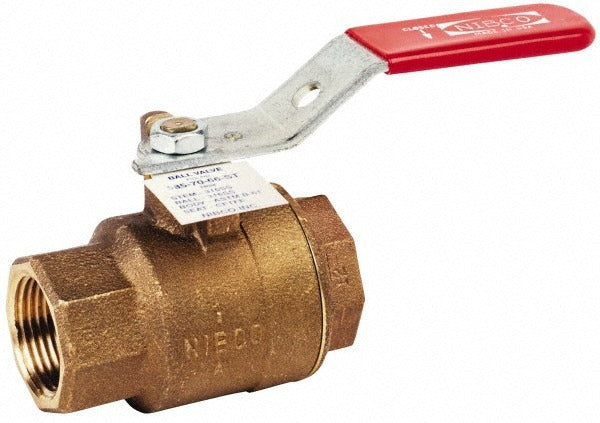

Nibco NL95I05 Ball Valve 3/8 Inch Fnpt Bronze 600 Psi

Product Description

The NIBCO NL95I05 is a standard 2-piece manual ball valve designed for inline shutoff and flow control in plumbing, HVAC, and light industrial piping systems. It features a full port design, meaning the bore diameter matches the pipe ID to minimize pressure drop across the valve. The body and trim are bronze construction, suited for water, compressed air, and compatible fluid service. A lever handle with memory stop allows quick quarter-turn operation and lets the technician re-set the open or closed stop position without additional tools. Rated to 600 psi maximum working pressure, this valve is built for demanding service conditions.

The NL95I05 is sized for 3/8 inch pipe with female NPT connections on both ends, making it a direct threaded installation into existing iron-pipe-sized piping. It is commonly installed in residential and light commercial plumbing systems, hydronic heating and cooling circuits, compressed air lines, and general process piping where a positive shutoff is required. The full port configuration is preferred in applications where maintaining flow capacity is critical, such as bypass loops, strainer service valves, and equipment isolation.

Key Features

• Full port design maintains flow capacity and minimizes pressure drop
• 2-piece bronze body and bronze trim for corrosion resistance in wet service
• FNPT x FNPT end connections for straightforward threaded installation
• Lever handle with memory stop for repeatable open and closed positioning
• 600 psi maximum working pressure rating
• Reinforced PTFE seat material for low torque operation and long service life

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/8 inch FNPT threaded piping systems in plumbing, hydronic, and light industrial applications.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off system pressure and drain the line before removing or installing any threaded valve. Apply thread sealant tape or pipe compound to male NPT threads per applicable plumbing code requirements such as IPC. Do not over-tighten threaded connections into the bronze body, as excessive torque can crack the fitting or distort the seat.
