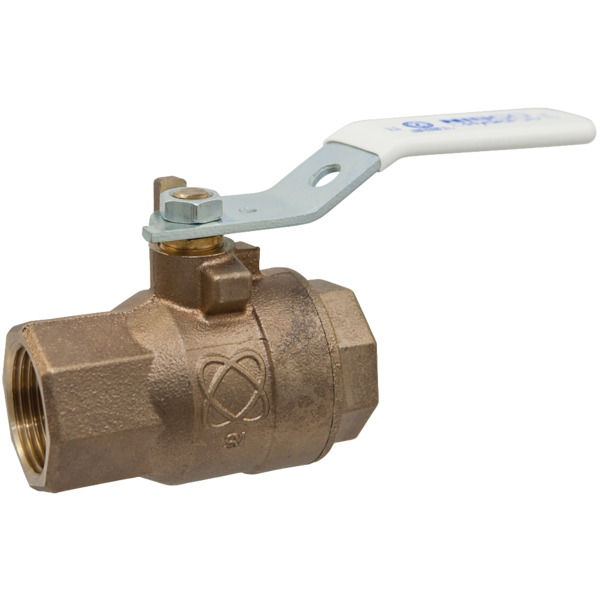

NIBCO NL95HXA T-585-66-LF 1 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL95HXA is a two-piece ball valve designed for reliable operation. This valve features a silicon bronze body and is ideal for water delivery in residential and commercial settings. The valve has a pressure rating of six hundred psi and a temperature rating of three hundred degrees Fahrenheit. The full port design ensures minimal flow restriction.

• Lead-free silicon performance bronze body
• Bubble-tight shutoff at six hundred psi
• Easy installation with threaded ends

Product Highlights

This valve is perfect for applications that involve water for human consumption and comes with a five-year limited warranty.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 2-Piece, Full-Port

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• End Style: Threaded
• Pressure Rating: 600 psi
• Temperature Rating: 300 degrees Fahrenheit
• Inlet to Outlet Length: 3.34 inches
• Nominal Size: 1 inch
• Orifice Size: 1 inch
