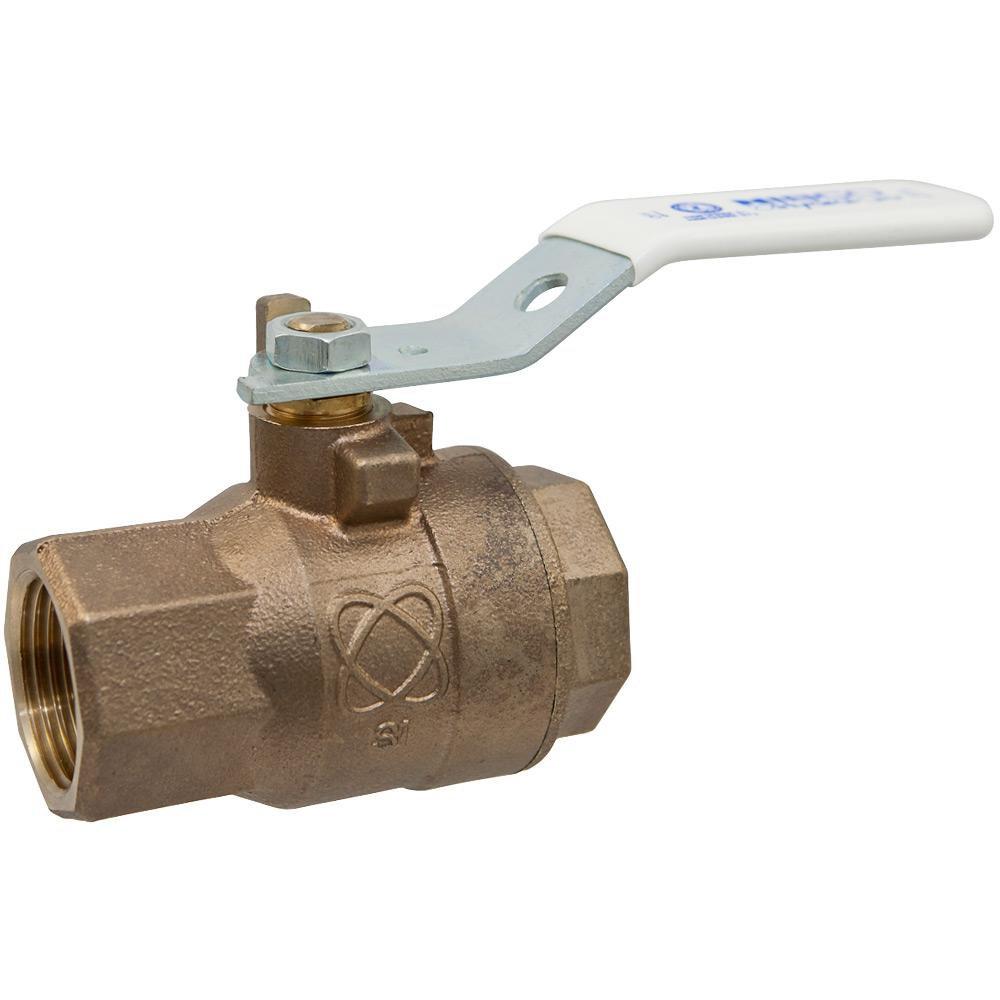

Nibco NL95HX8 T-585-66-LF 3/4 in DZR Silicon Bronze Full Port NPT 600# Ball Valve

Product Description

NIBCO NL95HX8 is a lead-free ball valve made from silicon bronze with a pressure rating of 600 psi. This two-piece design allows for a full port flow, suitable for applications serving water for human consumption. The valve features a lever handle actuator for ease of operation.

• Maximum operating temperature of three hundred degrees Fahrenheit
• Includes reinforced PTFE seat rings for durability
• Meets strict NSF requirements for human consumption

Product Highlights

This NIBCO ball valve is ideal for both residential and commercial construction. Its design resists dezincification and ensures bubble-tight shutoff.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL95HX8

Technical Specifications

• Body Material: Silicon Bronze
• Ball Material: Stainless Steel
• Connection Size: 3/4 in
• Connection Type: FNPT
• Pressure Rating: 600 psi
• Temperature Rating: 300 deg F
• Dimensions: 2.78 in length
• Type: 2-Piece, Full-Port
