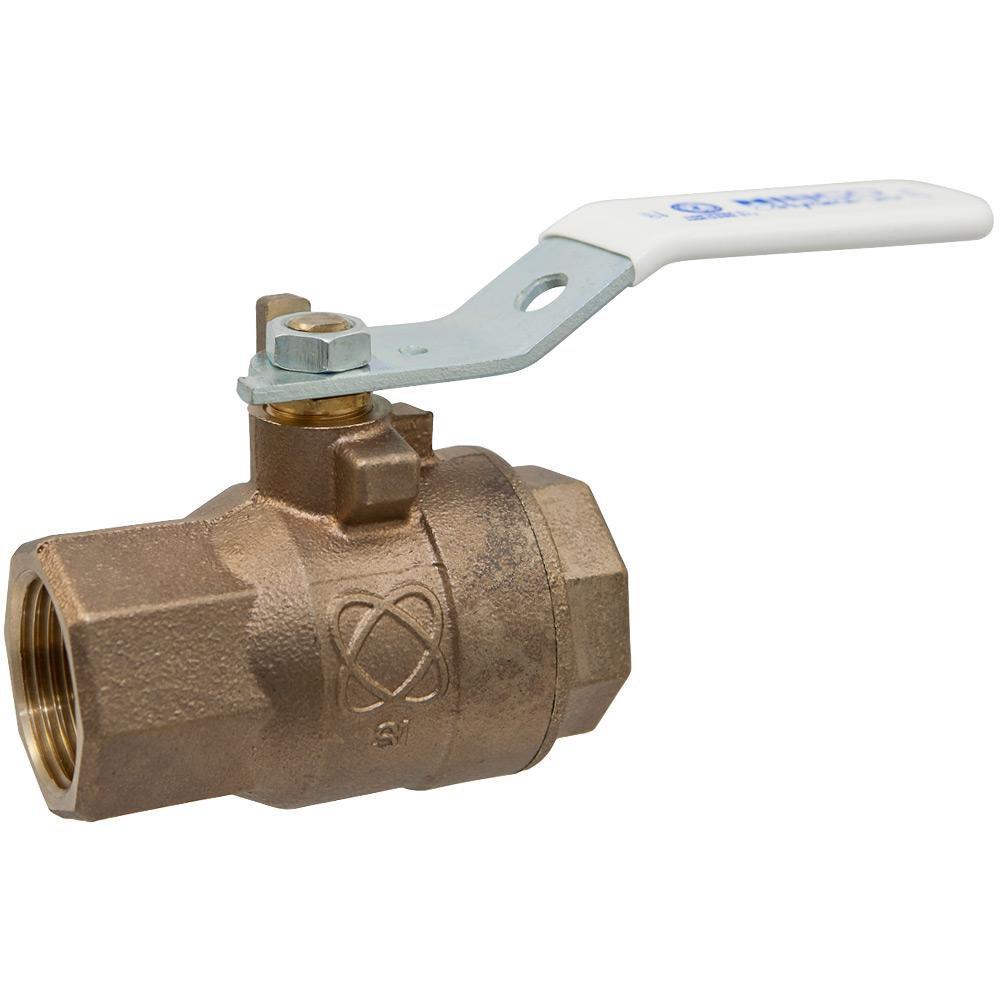

NIBCO NL95HX6 T-585-66-LF 1/2 in DZR Silicon Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL95HX6 is a two-piece ball valve designed for efficient flow control. It has a nominal size of one-half inch and features a full port design. This valve is ideal for applications where water is delivered for human consumption. Its silicon bronze body ensures durability while being lead-free. The valve is rated for a pressure of six hundred psi and can withstand temperatures up to three hundred degrees Fahrenheit.

• Lead-free silicon bronze body
• Dezincification resistant
• Vented ball and blowout-proof stem

Product Highlights

The valve comes with a lever handle actuator for easy operation and provides bubble-tight shutoff at high pressure. It is also compliant with various standards for safety and water quality.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-585-66-LF

Technical Specifications

• Type: 2-Piece
• Nominal Size: 1/2 in
• Orifice Size: 1/2 in
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Pressure Rating: 600 psi
• Temperature Rating: 300 deg F
• End Style: FNPT
• Inlet to Outlet Length: 2.23 in
• Top to Inlet Center: 1.96 in
• Trim Material: Stainless Steel Stem
• Softgoods Material: PTFE
