NIBCO NL95HX4 BALL VALVES
NIBCO NL95HX4 BALL VALVES

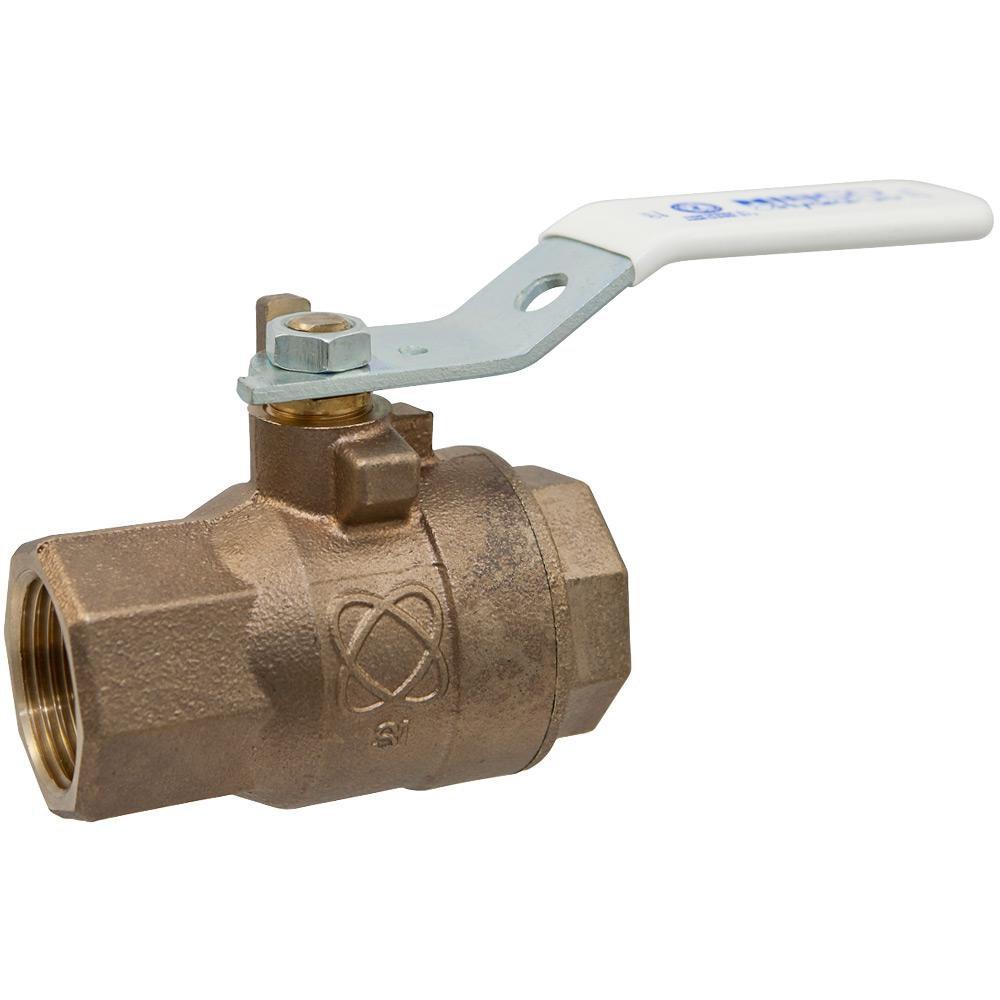

NIBCO NL95HX4 T-585-66-LF 1/4 in DZR Silicon Bronze Full Port NPT 600# Ball Valve

NIBCO
Brand: NIBCO
SKU: NL95HX4
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

NIBCO NL95HX4 T-585-66-LF is a two-piece ball valve designed for functionality and durability. It features a silicon bronze body and threaded end connections for simple installation. This valve supports a pressure rating of 600 psi and a temperature rating up to three hundred degrees Fahrenheit.

  • Valve pressure rating of 600 psi
  • Temperature rating up to three hundred degrees Fahrenheit
  • Constructed with silicon bronze and stainless steel materials

Product Highlights

This ball valve is suitable for water applications. It is designed for both residential and commercial use, ensuring reliability in various environments.

Product Information

Standard Information

  • Brand: NIBCO
  • MPN: NL95HX4
Technical Specifications
Actuator Type
Lever Handle
Ball Material
Stainless Steel
Body Material
Silicon Bronze
End Style
Thread
Inlet to Outlet Length
1.78 inches
Media
Water
Nominal Size
1/4 inches
Orifice Size
0.31 inches
Port Type
Full
Pressure Rating
600 psi
Series
T-585-66-LF
Softgoods Material
PTFE
Temperature Rating
300 degrees Fahrenheit
Top to Inlet Center
1.86 inches
Trim Material
Stainless Steel Stem
Type
2-Piece
Domestic/Import
Domestic
