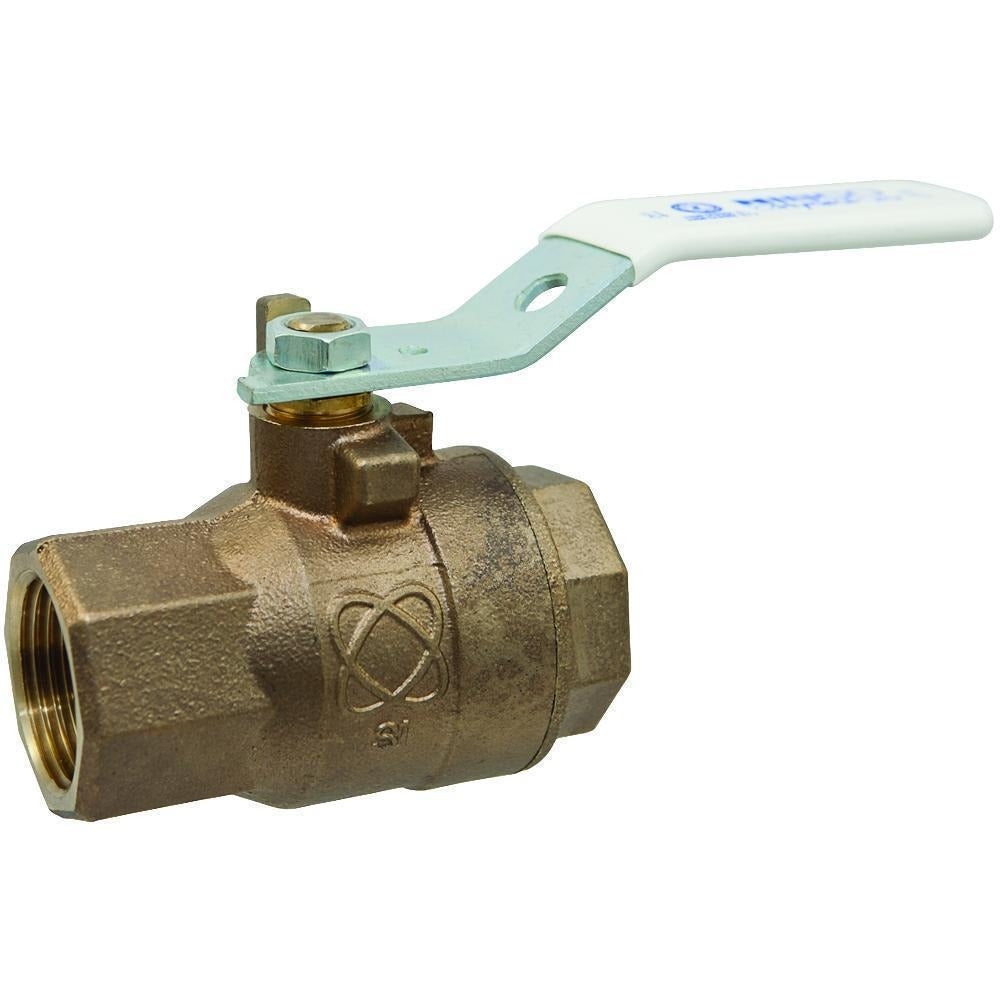

Nibco NL95HN6 2-piece Ball Valve 1/2 in Threaded Full Port

Product Description

The NIBCO NL95HN6 is a two-piece, full-port ball valve designed for potable water systems in residential and commercial construction. Part of the T-585-66-LF HydraPure series, it is built to lead-free standards and certified to NSF/ANSI 61-8 and NSF/ANSI 372, making it compliant for applications that deliver water for human consumption. The silicon bronze body pairs with a stainless steel stem and PTFE softgoods for corrosion resistance and long service life. Rated at 600 psi cold working pressure and up to 300 degrees F, this valve handles the demands of high-pressure domestic water lines. It is domestically manufactured.

The NL95HN6 is sized at 1/2 in nominal with threaded end connections, fitting standard NPT plumbing configurations. Its full-port design allows unrestricted flow through the 1/2 in orifice, minimizing pressure drop across the valve. The NIB-SEAL extended insulated handle provides a positive shutoff feel and thermal protection during operation. This valve is appropriate for potable water shutoff service in both new residential construction and commercial retrofit plumbing projects where lead-free compliance is required by code.

Key Features

• Lead-free construction certified to NSF/ANSI 61-8 and NSF/ANSI 372 for potable water service
• 600 psi cold working pressure rating for high-pressure domestic water applications
• Full-port design with 1/2 in orifice minimizes flow restriction
• Silicon bronze body with stainless steel stem trim for corrosion resistance
• NIB-SEAL extended insulated handle for secure, comfortable operation
• PTFE softgoods and RTFE seats for reliable, low-torque shutoff
• Domestically manufactured with a 5-year limited warranty

Compatibility

Designed for potable water shutoff applications in residential and commercial plumbing systems requiring lead-free, NSF/ANSI 61-8 and NSF/ANSI 372 compliant components. Accepts standard 1/2 in NPT threaded pipe connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the main water supply and relieve system pressure before removing or installing the valve. Use appropriate thread sealant compatible with potable water service on all NPT connections. Do not exceed the rated pressure or temperature limits during operation or pressure testing.
