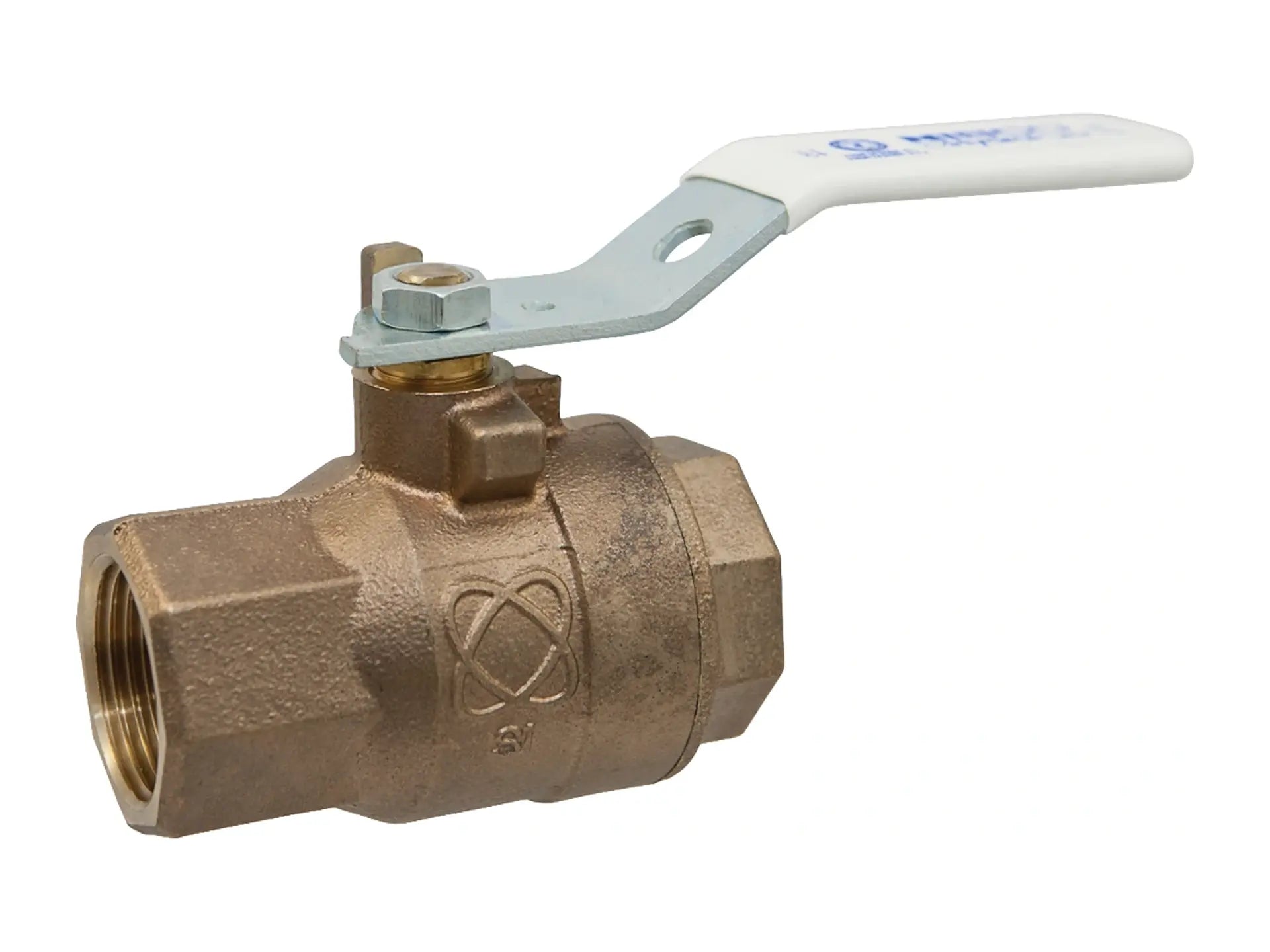

Nibco NL95HMD Ball Valve, 2 Piece, 2 Inch Valve Size, Thread End Style, T-585-66-LF-NS

Product Description

The NIBCO NL95HMD ball valve is made of lead-free bronze with a stainless steel stem and ball, ideal for delivering water for human consumption in residential and commercial construction. This two-piece valve features threaded ends for easy installation and quarter-turn (90°) operation. It conforms to MSS SP-110 and is dezincification resistant.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Maximum temperature rating 300°F
• Full port

Product Highlights

The NIBCO NL95HMD is a versatile and economical valve option for commercial, residential, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL95HMD
• Country of Origin: US

Technical Specifications

• Item: Ball Valve
• Manufacturer: NIBCO
• Part Number: NL95HMD
• Model: T-585-66-LF-NS
• Series: T-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 2"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Material: Silicon Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923349194
• Length: 7.43"
• Width: 6.48"
• Height: 2.94"
• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM A-276, ASTM B-16, ASTM B-584
• Collection: T-585-66-LF
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT
• FM Approved: No
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material Type: DZR
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• UL Listed: No
• Valve Body Style: 2 piece
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 2 in
