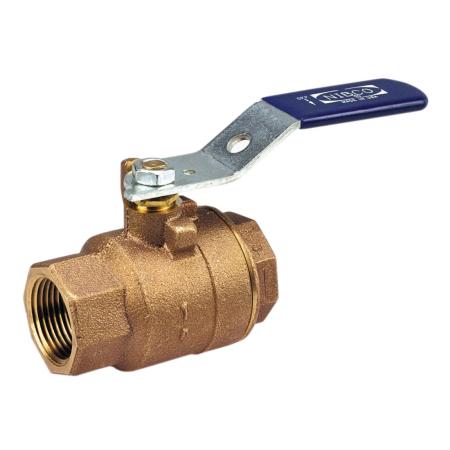

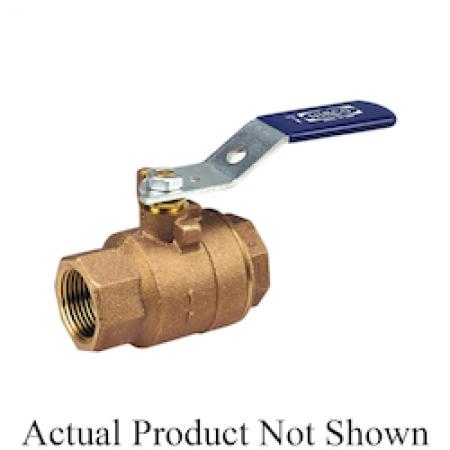

NIBCO NL95HE8 T5857066EL 3/4 W/EXT LEVER HDL

Product Description

The NIBCO NL95HE8 is a reliable ball valve designed for use in plumbing and HVAC applications. This valve, part of the T-585-70-66-EL series, features a three-quarter inch nominal size with NPT connections and a pressure rating of six hundred psi. It is suitable for handling water, making it ideal for various low-pressure systems.

• Durable bronze body construction
• 316 stainless steel ball and trim for enhanced longevity
• Blowout-proof stem design for safety

Product Highlights

This valve excels in high-performance environments, rated for temperatures up to four hundred degrees Fahrenheit. Its full port design ensures minimal flow restriction, and the standard lever handle actuator allows for easy operation.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UOM: Each

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: 316 Stainless Steel
• Body Material: Bronze
• End Style: NPT
• Inlet to Outlet Length: 2.94 inches
• Media: Water
• Nominal Size: 3/4 inches
• Orifice Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-585-70-66-EL
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 2-1/4 inches
• Trim Material: 316 Stainless Steel Stem
• Type: 2-Piece
