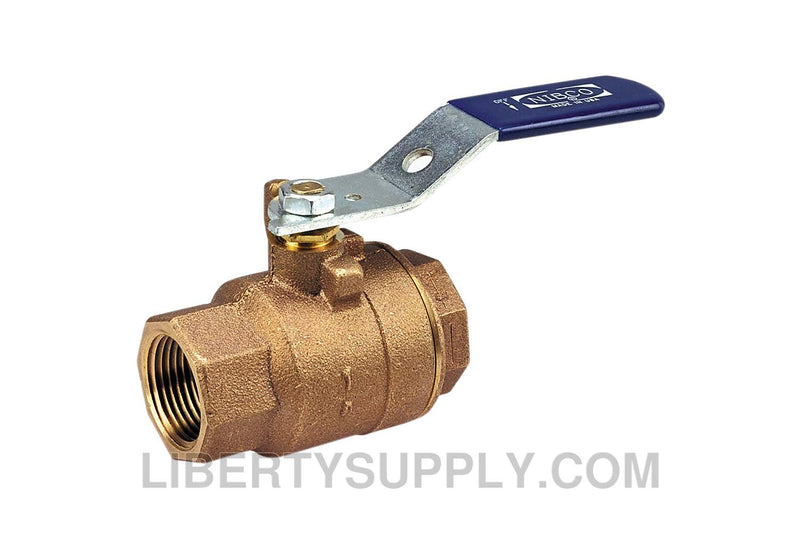

NIBCO NL95H4A T-585-70-66 1 in. Bronze Full Port FIPT 600# Ball Valve

Product Description

The NIBCO NL95H4A is a ball valve designed for use in various applications. It features a full port design and is suitable for media like air, gas, and water. This valve has a pressure rating of six hundred psi and a temperature rating of four hundred degrees Fahrenheit. The standard lever handle allows for easy operation.

• Max temperature rating of four hundred degrees Fahrenheit
• Pressure rating of six hundred psi
• Threaded end connections for easy installation

Product Highlights

The NIBCO NL95H4A ball valve is ideal for commercial and light industrial applications. Its design allows for efficient flow and reliable performance under high pressure.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL95H4A

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: 316 Stainless Steel
• Body Material: Bronze
• Inlet to Outlet Length: 3.34 in
• Top to Inlet Center: 2.38 in
• Media: Air/Gas/Water
• Nominal Size: 1 in
• Orifice Size: 1 in
• Pressure Rating: 600 psi
• Series: T-585-70-66
• Temperature Rating: 400 deg F
• Trim Material: 316 Stainless Steel Stem
• Softgoods Material: PTFE
• Domestic/Import: Domestic
