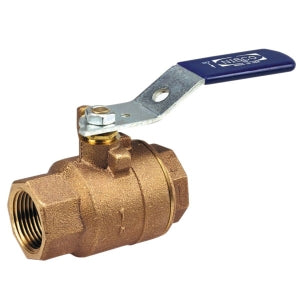

NIBCO NL95H48 T-585-70-66 3/4 in. Bronze Full Port FIPT 600# Ball Valve

Product Description

The NIBCO NL95H48 is a two-piece ball valve designed for various applications. This valve features a three-quarter inch nominal size with NPT end connections. It is rated for a maximum pressure of six hundred psi and operates effectively at temperatures up to four hundred degrees Fahrenheit.

• Full port design for optimal flow
• Dezincification resistant
• Stainless steel ball and stem for durability

Product Highlights

This ball valve is suitable for air, gas, and water applications. Its blowout-proof stem contributes to safety and reliability in various operational conditions.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL95H48

Technical Specifications

• Nominal Size: 3/4 in
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Body Material: Bronze
• Ball Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Softgoods Material: PTFE
• Inlet to Outlet Length: 2.94 in
• Top to Inlet Center: 2-1/4 in
• End Style: NPT
• Actuator Type: Standard Lever Handle
