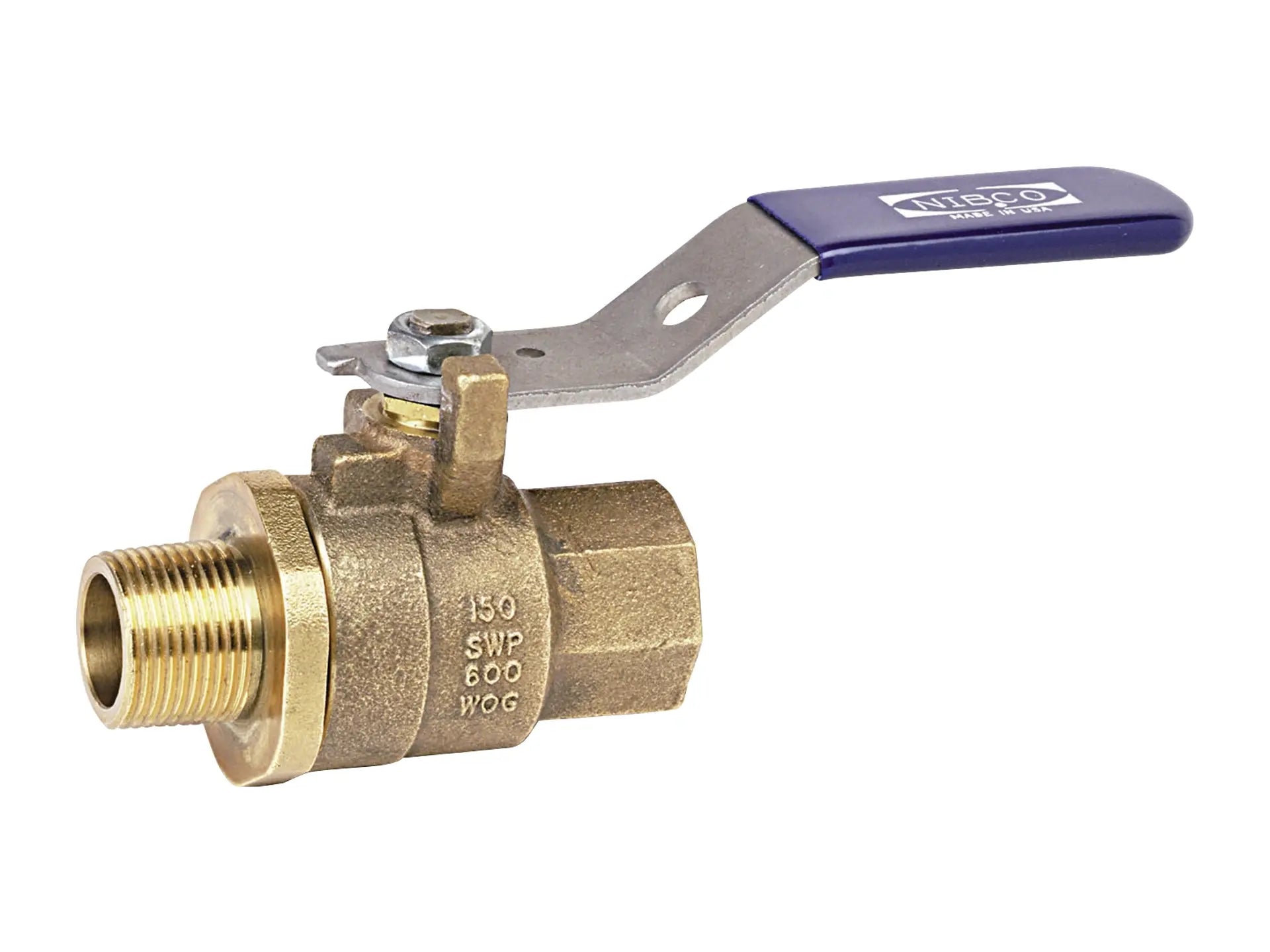

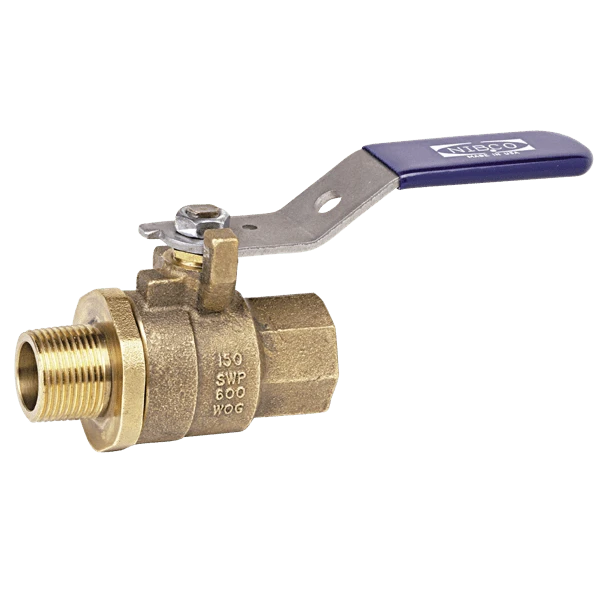

Nibco NL95G06 mtt-585-70 two-piece bronze ball valve male x female threaded end connections

Product Description

The NIBCO MTT-585-70 full port bronze ball valve provides bubble-tight shutoff at 600 PSI. This two-piece valve is suitable for commercial and light industrial applications, including HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, and natural gas. It features quarter-turn (90 degrees) open to close.

• Full port
• Bubble-tight shutoff at 600 PSI
• Ease of operation with quarter-turn (90 degrees) open to close

Product Highlights

The NIBCO bronze ball valve is versatile and economical for commercial, mechanical, and industrial applications. It features male x female threaded end connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL95G06
• Country of Origin: US

Technical Specifications

• UPC Code: 039923796561
• Type: Ball Valve
• Connection Type: MTT - Male NPT Thread (MIPT) x Female NPT Thread (FIPT)
• Ball Material: Brass with Hard Chrome Plate
• Valve Size: 1/2"
• Material: Bronze
• Valve Operator: CS Standard Lever Handle
• Description: MTT58570 1/2 MALE/FEMALE NPT ENDS
• Valve Pressure Rating (SWP): 150 PSI / 10.3 Bar SWP
• Turns/Operation: Quarter-Turn
• Ball Finish: Chrome Plated
• Body Material: Bronze
• Manufacturer: NIBCO
• Part Number: NL95G06
• Model: MTT-585-70
• Series: MTT-585-70
• Type of Valve: Ball
• Nominal Pipe Size: 1/2"
• Ball Body Type: Two-Piece
• Ball Port Style: Full Port
• Ball Stem Material: BRZ - Bronze
• Trim Package: Bronze Trim
• Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Pressure Rating (CWP): 600 psi/41.4 Bar CWP
• Potable Water Code: Not LL Comp not intend potable
• Length: 5.3"
• Width: 2.5"
• Height: 1.3"
