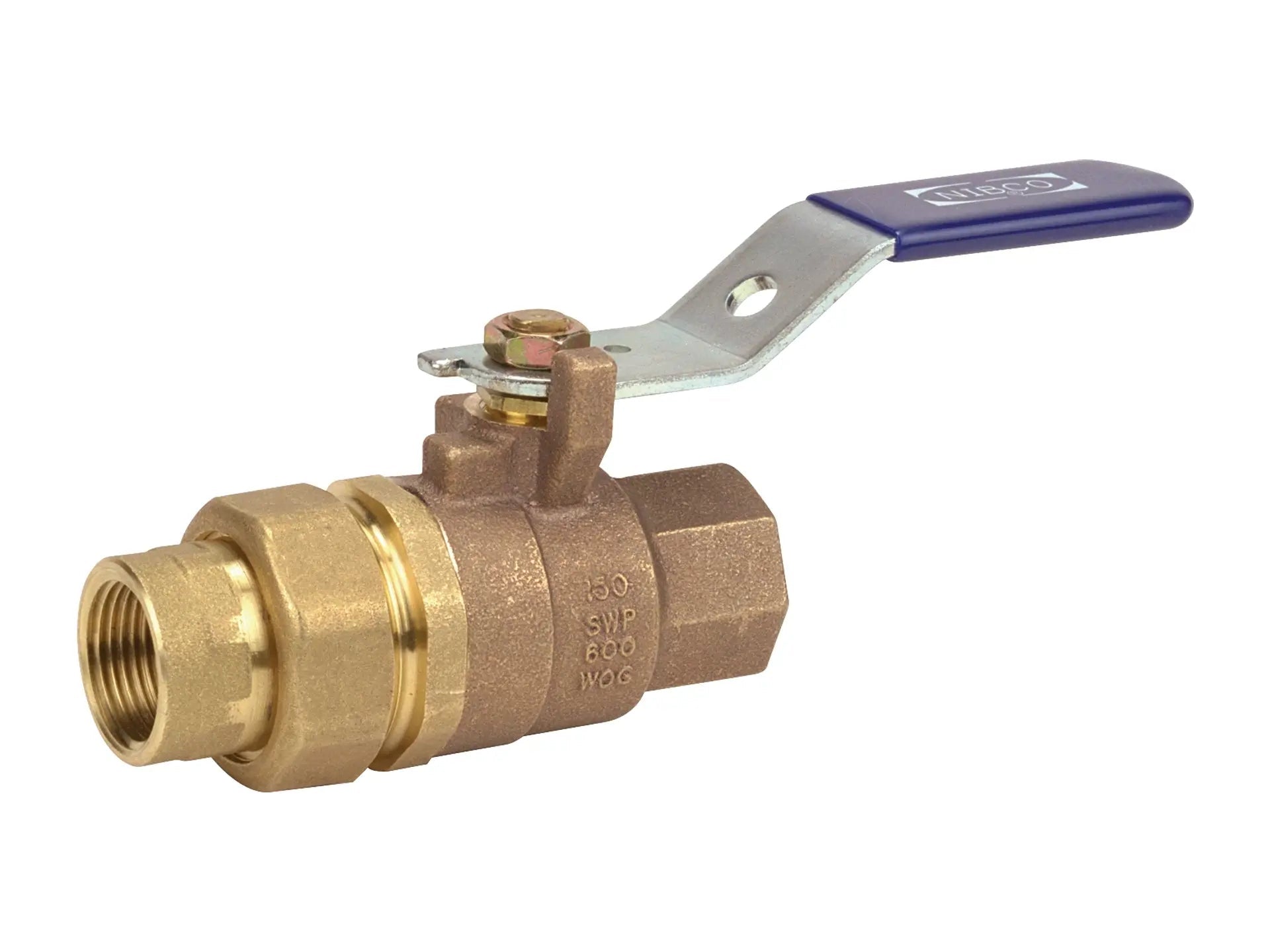

Nibco NL95F0C T-585-70-SU Two-Piece Bronze Ball Valve Single Union End, Threaded

Product Description

The NIBCO NL95F0C bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close, and bubble-tight shutoff. The two-piece valve features threaded ends for easy installation and a single union end piece. It is ideal for commercial and light industrial process applications. Valve pressure rating 600 psi.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Maximum temperature rating 400°F
• Threaded end connections

Product Highlights

The NIBCO bronze ball valve features a single union end piece to save labor, space and additional pipe joints.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL95F0C

Technical Specifications

• UPC Code: 039923796806
• Type: Ball Valve
• Connection Type: T-SU -- Female NPT Thread (FIPT) x Female NPT Thread (FIPT) Union End
• Valve Size: 1 1/2
• Material: Bronze
• Valve Operator: CS Standard Lever Handle
• Description: T58570SU 1 1/2 W/SINGLE UNION END
• eClass Classification: Bronze Ball Valves
• All Type of Item: Valve
• Valve Pressure Rating (SWP): 150 PSI / 10.3 Bar SWP
• Turns/Operation: Quarter-Turn
• Weight: 6.436 lb
• Brand: NIBCO
• Manufacturer Part Number: NL95FOC
• MPN: NL95FOC
• Manufacturer: NIBCO
• Part Number: NL95F0C
• Model: T-585-70-SU
• Valve pressure rating: 600 psi 41.4 bar non-shock cold working pressure
• Maximum temperature rating: 400°F
• Port: Full port
• End connection: Single union end piece
• Ball: Chrome plated brass ball
• Stem: Silicon bronze stem
• Stem type: Blowout-proof stem
• Handle: Standard lever handle, optional NIB-SEAL®
• End connections: Threaded end connections
• Resistant: Dezincification resistant
• Conforms to: MSS SP-110
