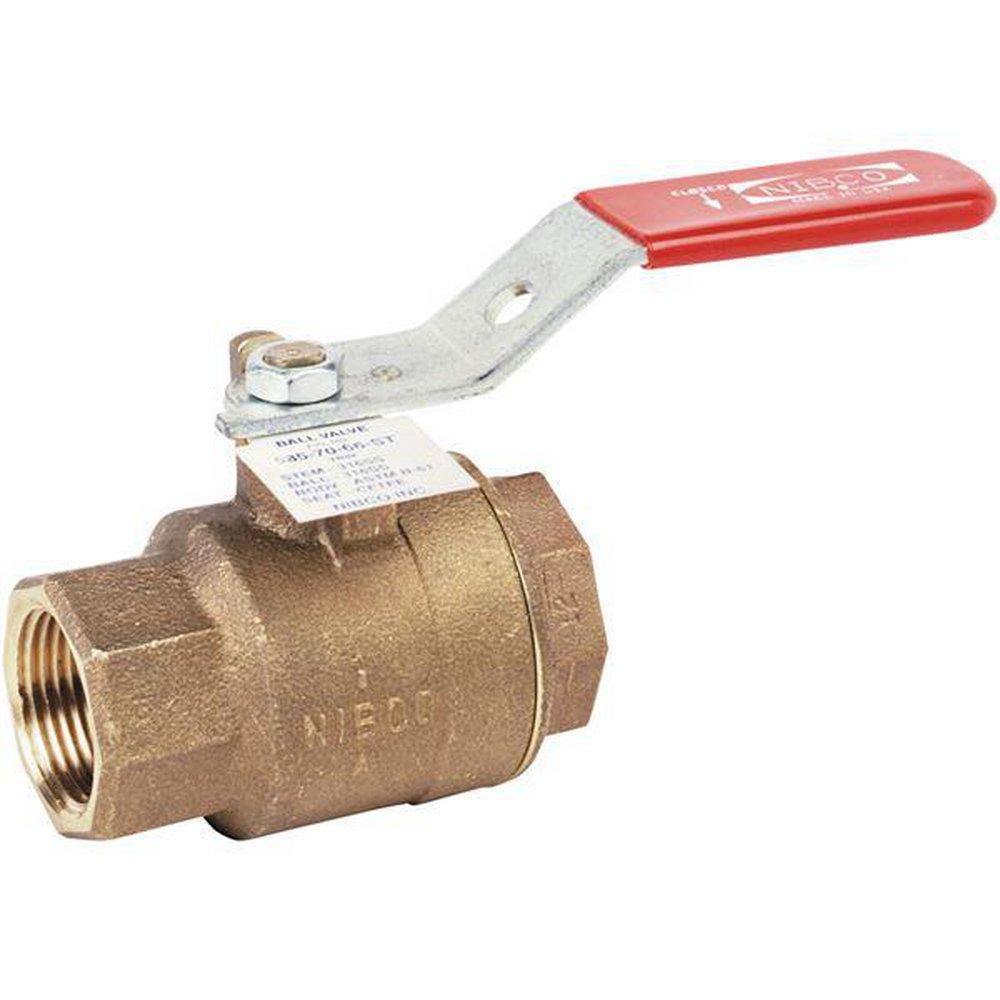

NIBCO NL95D0D T-585-70-66-ST 2 in. Bronze Full Port FIPT 600# Ball Valve

Product Description

NIBCO NL95D0D T-585-70-66-ST is a two-piece ball valve designed for heavy-duty applications. This valve is suitable for water media and has a pressure rating of six hundred psi. It can withstand temperatures up to four hundred degrees Fahrenheit. This product features a full port design for maximum flow efficiency.

• Stainless steel ball and trim for enhanced durability
• Blowout-proof stem to ensure safe operation
• Dezincification resistant materials for extended service life

Product Highlights

This valve is ideal for commercial and light industrial applications, including medium pressure steam systems.

Product Information

Standard Information

• Series: T-585-70-66-ST
• Manufacturer: NIBCO INC

Technical Specifications

• Nominal Size: 2 in
• Orifice Size: 2 in
• Media: Water
• Inlet to Outlet Length: 5.16 in
• Top to Inlet Center: 3.5 in
• Dimensions: 9.25 in L
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Body Material: Bronze
• Ball Material: Stainless Steel
• Softgoods Material: Carbon Filled PTFE
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Actuator Type: Standard Lever Handle
• End Style: FNPT
• Port Type: Full
• Domestic/Import: Domestic
