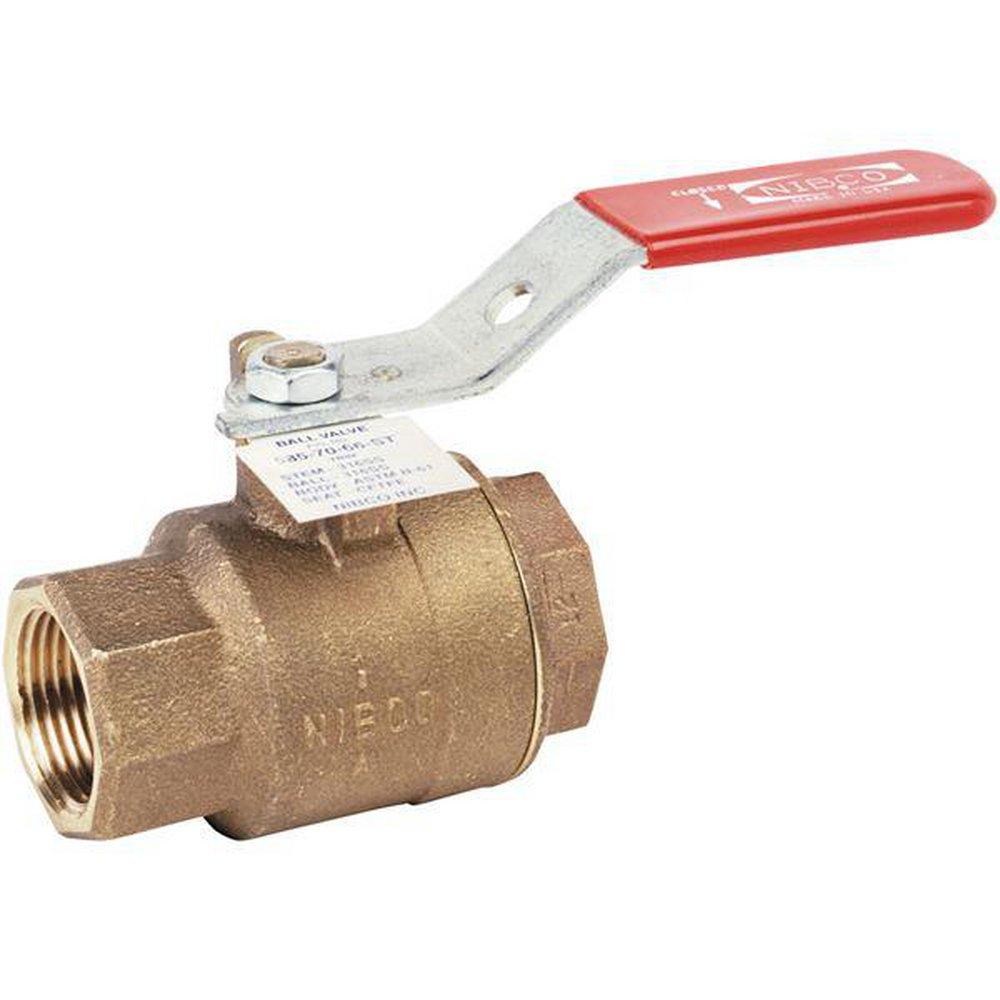

NIBCO NL95D0B T-585-70-66-ST 1-1/4 in. DZR Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL95D0B is a T-585-70-66-ST ball valve with a nominal size of one and one-fourth inches. This valve is designed for high-pressure applications and features a dezincification resistant bronze body. The valve operates at a pressure rating of six hundred psi and a temperature rating of four hundred degrees Fahrenheit. It includes a standard lever handle for ease of operation.

• Dezincification resistant bronze body
• Full port design for maximum flow
• Blowout-proof stem

Product Highlights

The NIBCO NL95D0B ball valve is ideal for medium pressure steam and water services in commercial and light industrial applications. The full port design reduces turbulence and pressure drop.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-585-70-66-ST

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Stainless Steel
• Body Material: Bronze
• Dimensions: Six and three-fourths inches long
• Nozzle Size: One and one-fourth inches
• Pressure Rating: Six hundred psi
• Temperature Rating: Four hundred degrees Fahrenheit
• Inlet to Outlet Length: Four point nineteen inches
