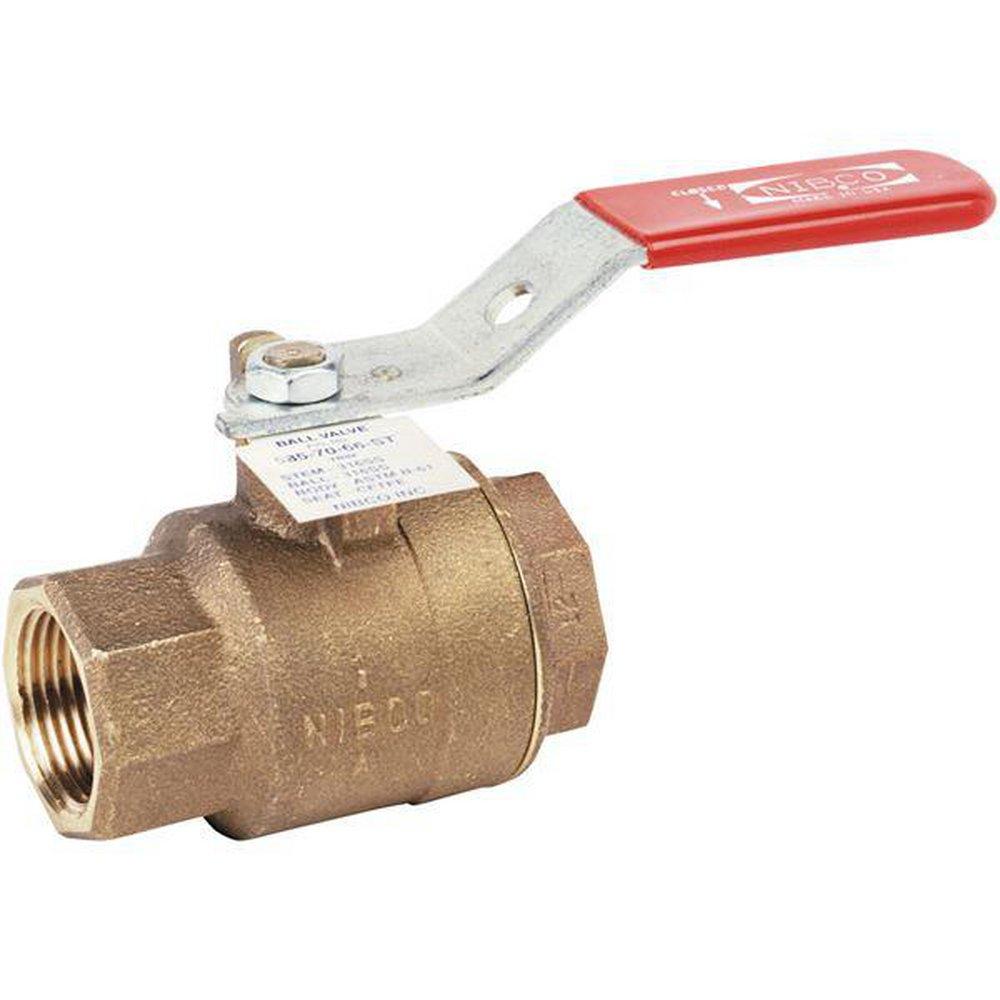

NIBCO NL95D08 T-585-70-66-ST 3/4 in. DZR Bronze Full Port NPT 600# Ball Valve

Product Description

NIBCO NL95D08 T-585-70-66-ST is a three-quarter inch DZR bronze full port NPT ball valve designed for high pressure applications. This valve features a 600 psi non-shock cold working pressure rating and is ideal for water media. The valve comes equipped with a standard lever handle for easy operation.

• Pressure rating of six hundred psi
• Dezincification resistant construction
• Full port design for maximum flow

Product Highlights

This NIBCO ball valve is reliable for both commercial and light industrial applications, including medium pressure steam service.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: NL95D08

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Stainless Steel
• Body Material: Bronze
• Dimensions: 6.25 inches length
• End Style: FNPT
• Inlet to Outlet Length: 2.94 inches
• Media: Water
• Nominal Size: 3/4 inches
• Orifice Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 2.25 inches
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
