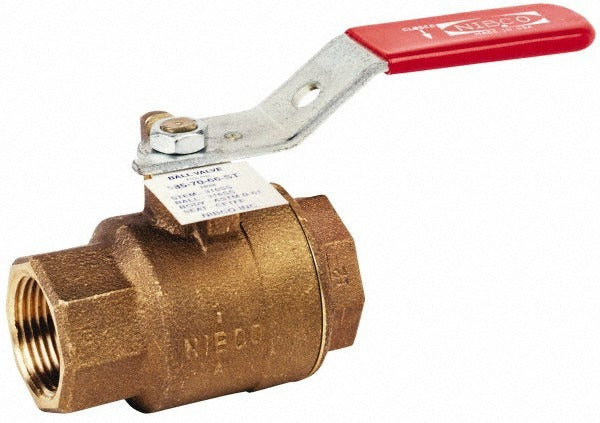

Nibco NL9540D 2 Inch Full Port Bronze Ball Valve 600 Psi

Product Description

The NIBCO NL9540D is a 2-inch, 2-piece standard manual ball valve built for demanding plumbing, hydronic, and industrial piping applications. The bronze body and bronze trim provide corrosion resistance in both hot and cold water systems. A full-port design maintains unrestricted flow through the valve bore, minimizing pressure drop across the fitting. Reinforced polytetrafluoroethylene (PTFE) seats and seals deliver a reliable shut-off and withstand a maximum working pressure of 600 psi and temperatures up to 400 degrees F. The lever handle includes a memory stop for repeatable positioning in the field.

This valve is suited for residential and light commercial plumbing, hydronic heating, process piping, and compressed air or steam systems where a full-port bronze ball valve is required. The female NPT on both ends allows straightforward threaded installation into standard pipe runs. It is commonly installed by licensed plumbers and pipefitters in new construction and retrofit projects where bubble-tight shut-off and high-pressure performance are priorities.

Key Features

• Full-port design minimizes flow restriction and pressure drop
• Bronze body and trim rated for 600 psi maximum working pressure
• Reinforced PTFE seats and seals for durable, leak-free shut-off
• Lever handle with memory stop for repeatable valve positioning
• FNPT x FNPT end connections for standard threaded pipe installation
• Rated to 400 degrees F maximum working temperature

Compatibility

Designed as an OEM-style replacement or direct-install full-port bronze ball valve for 2-inch threaded pipe systems using female NPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local plumbing codes. Depressurize and drain the piping system fully before removing or installing any valve. Use appropriate pipe thread sealant or PTFE tape on NPT threads and avoid over-tightening, which can crack fittings or distort the valve body. Verify that the system operating pressure and temperature do not exceed the valve ratings before returning the line to service.
