Product Description

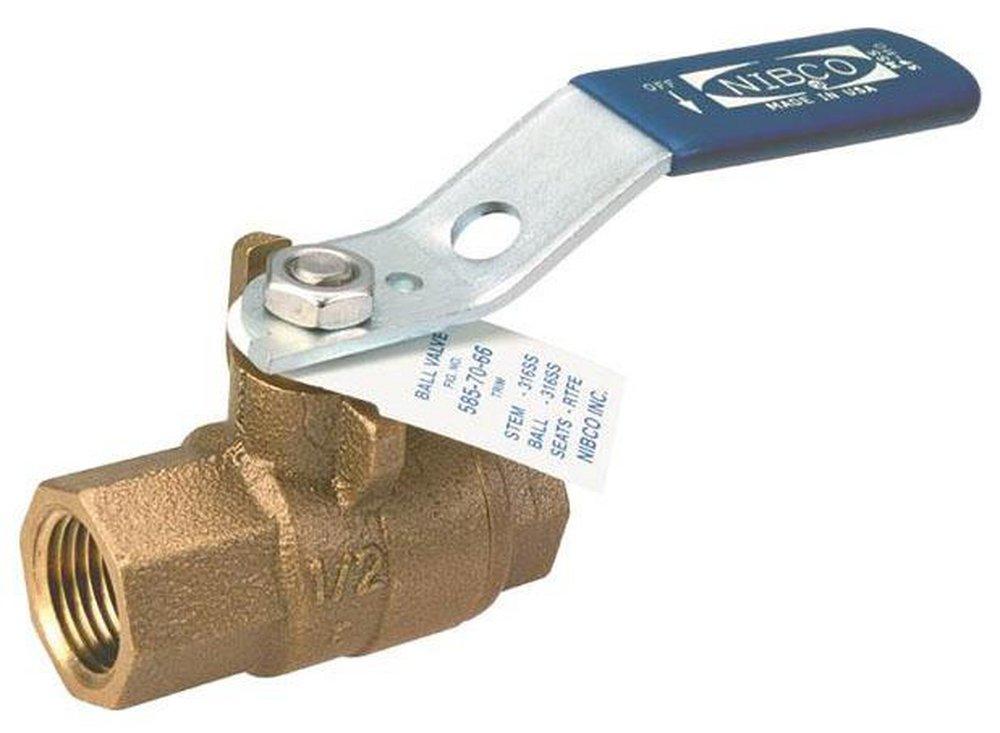

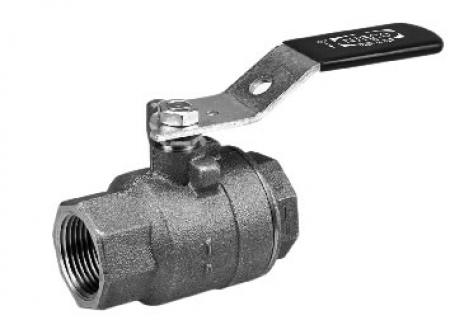

The NIBCO NL951HD T-585-70-66 is a two-piece bronze full port FNPT ball valve designed for various applications, including HVAC and compressed air systems. This valve has a pressure rating of six hundred psi and a temperature rating of four hundred degrees Fahrenheit. It is suitable for commercial and light industrial process applications that may involve natural gas, LP gas, and aggressive water conditions.
- Full port design for maximum flow
- Blowout-proof stem for enhanced safety
- Reinforced PTFE seat ring with stainless steel ball for chemical resistance
Product Highlights
This valve features standard lever operation for ease of use and threaded end connections for simple installation. It is also dezincification-resistant and allows for bubble-tight shutoff, ensuring reliable performance.
Product Information
Standard Information
-
Brand: NIBCO
-
MPN: NL951HD
Technical Specifications
-
Actuator Type: Standard Lever
-
Ball Material: Stainless Steel
-
Body Material: Bronze
-
Pressure Rating: 600 psi
-
Temperature Rating: 400 degrees Fahrenheit
-
Nominal Size: 2 inches
-
End Style: FNPT
-
Inlet to Outlet Length: 5.16 inches
