Product Description

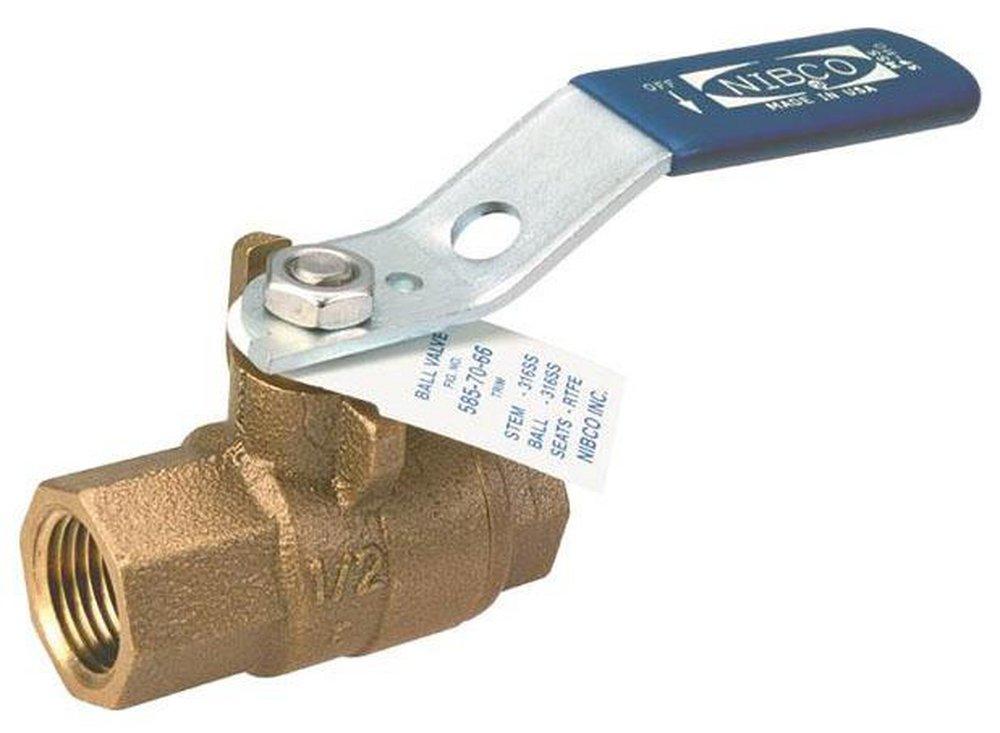

The Nibco NL951HC T-585-70-66 1-1/2 inch bronze full port FNPT 600# ball valve is a versatile tool for commercial and light industrial process applications. It is suitable for HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas, and aggressive water applications.
- 600 PSI/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Stainless steel trim
Product Highlights
This full port valve handles a variety of media including air, gas, and water. It features a two-piece bronze body, stainless steel ball and stem, and PTFE seat ring/packing. The lever handle is standard, with an optional NIB-SEAL available. The valve also includes a safety vent for compressed air lines, making it ideal for high-pressure environments.
Product Information
Standard Information
-
Brand: Nibco
-
MPN: NL951HC
-
Model: T-585-70-66
Technical Specifications
-
Actuator Type: Standard Lever
-
Ball Material: Stainless Steel
-
Body Material: Bronze
-
Domestic/Import: Domestic
-
End Style: FNPT
-
Inlet to Outlet Length: 4.72 inches
-
Media: Air/Gas/Water
-
Nominal Size: 1-1/2 inches
-
Orifice Size: 1-1/2 inches
-
Port Type: Full
-
Pressure Rating: 600 PSI
-
Series: T-585-70-66
-
Softgoods Material: PTFE
-
Temperature Rating: 400 degrees Fahrenheit
-
Top to Inlet Center: 3.16 inches
-
Trim Material: Stainless Steel Stem
-
Type: 2-Piece
