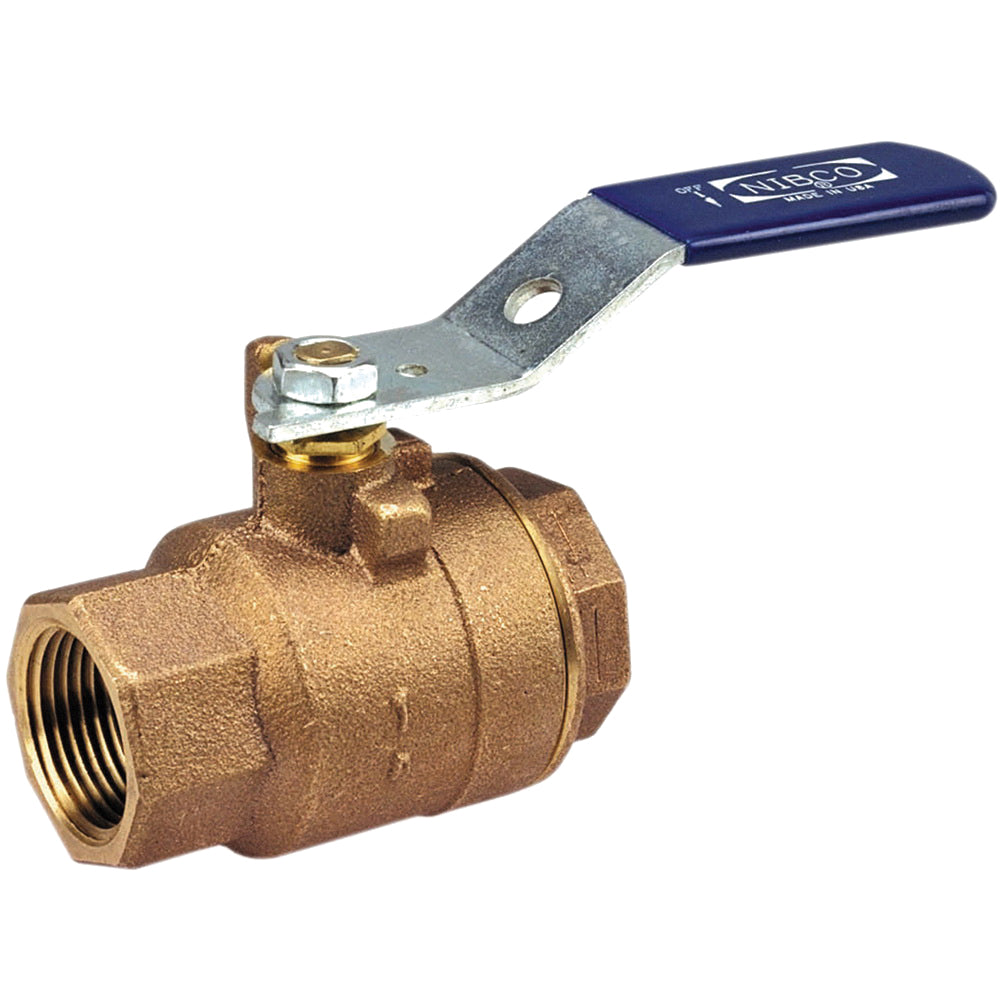

NIBCO NL9510D T-585-70 2-Piece Full-Port Ball Valve FNPT 600 psi

Product Description

Introducing the NIBCO NL9510D T-585-70, a robust 2-inch DZR Cast Bronze Full Port Ball Valve designed expressly for high-pressure applications. This valve ensures secure, bubble-tight shutoff, operating optimally up to 600 psi, making it ideal for HVAC systems, low pressure steam, and various gas and water applications.

• Durable construction with cast red bronze body and hard chrome-plated brass ball.
• Full port design ensures maximum flow and minimal pressure drop.
• Features FNPT connections for easy and secure installation.

Product Highlights

The NIBCO NL9510D T-585-70 valve is designed with a reinforced PTFE seat ring which enhances its durability and resistance to chemicals. It incorporates a blowout-proof stem and is dezincification resistant, increasing its longevity in challenging environments. Its quarter-turn lever handle allows for quick and efficient operation.

Product Information

Standard Information

• Pressure Rating: 600 psi
• Temperature Rating: up to 400 degrees Fahrenheit

Technical Specifications

• Body Material: Cast Red Bronze
• Ball Material: Hard Chrome-Plated Brass
• Seat Material: RPTFE
• Stem Material: Bronze
• Connection Type: FNPT
• Size: 2 inches
• Dimensions: Height: 4.65 inches, Width: 5.2 inches, Length: 9.25 inches
