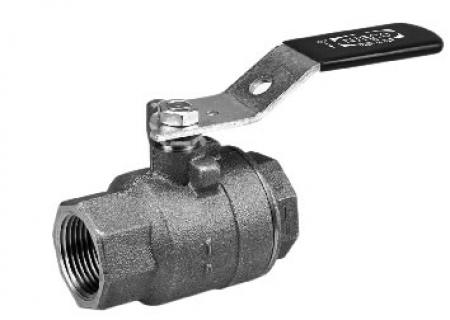

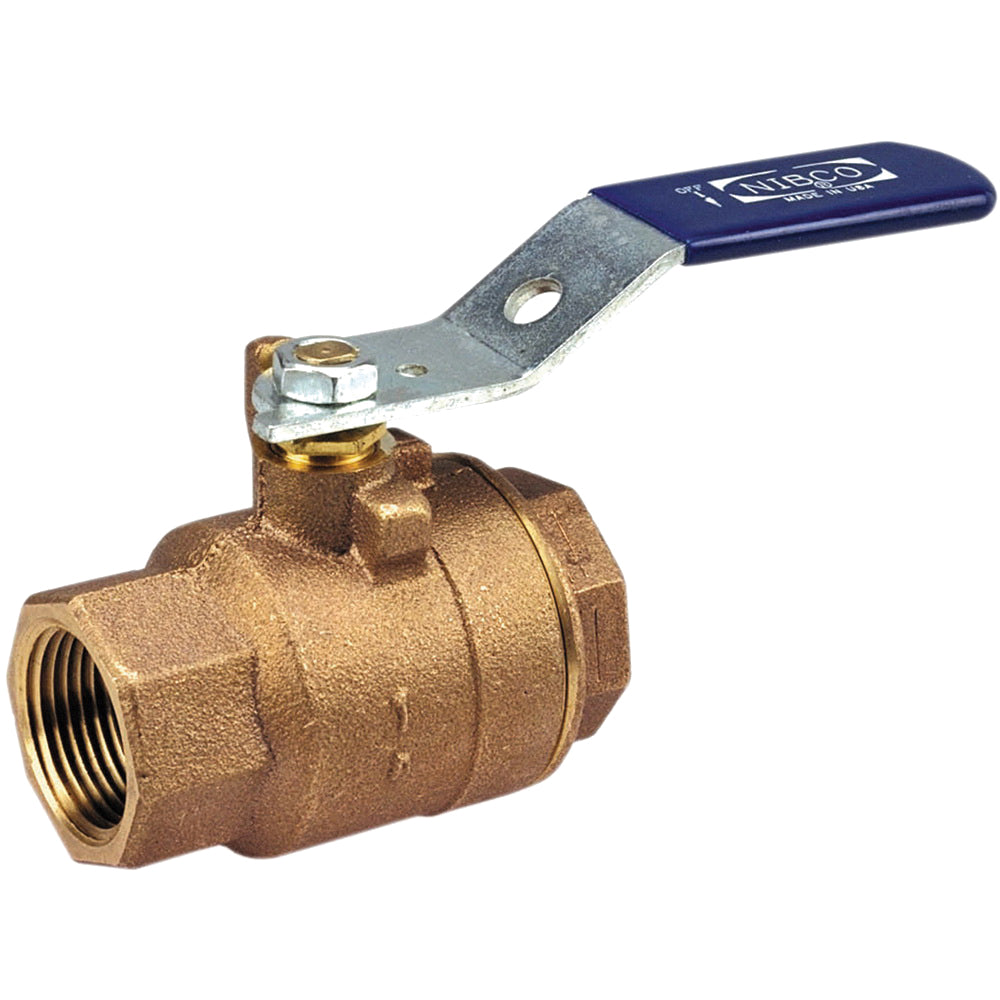

NIBCO NL9510C T-585-70 Bronze 2-Piece Full-Port Ball Valve 1-1/2 inch FNPT

Product Description

The NIBCO NL9510C T-585-70 1-1/2 inch cast bronze full-port ball valve is engineered for reliability and durability in high-pressure applications. This two-piece valve features a blowout-proof stem and a hard chrome-plated brass ball for extended service life.

• Rated for 600 psi non-shock cold water pressure.
• Threaded FNPT end connections for secure installation.
• Dezincification resistant, ensuring longevity in various environmental conditions.

Product Highlights

Featuring a full port design, the NIBCO NL9510C ball valve ensures minimal pressure drop and optimal flow. It is specifically crafted from cast red bronze, offering superior corrosion resistance and is equipped with a standard lever handle for easy operation. This valve's compatibility with hot and cold domestic water systems, as well as HVAC and compressed air applications, makes it a versatile solution for plumbing professionals.

Product Information

Standard Information

• Pressure Rating: 600 psi CWP non-shock
• Temperature Tolerance: Up to 400 degrees Fahrenheit

Technical Specifications

• Connection Type: FNPT
• Size: 1-1/2 inches
• Body Material: Cast Red Bronze
• Ball Material: Hard Chrome-Plated Brass
• Stem Material: Silicon Bronze
• Seal and Seat Materials: Reinforced PTFE providing high chemical resistance
• Standards: MSS SP-110 certified
