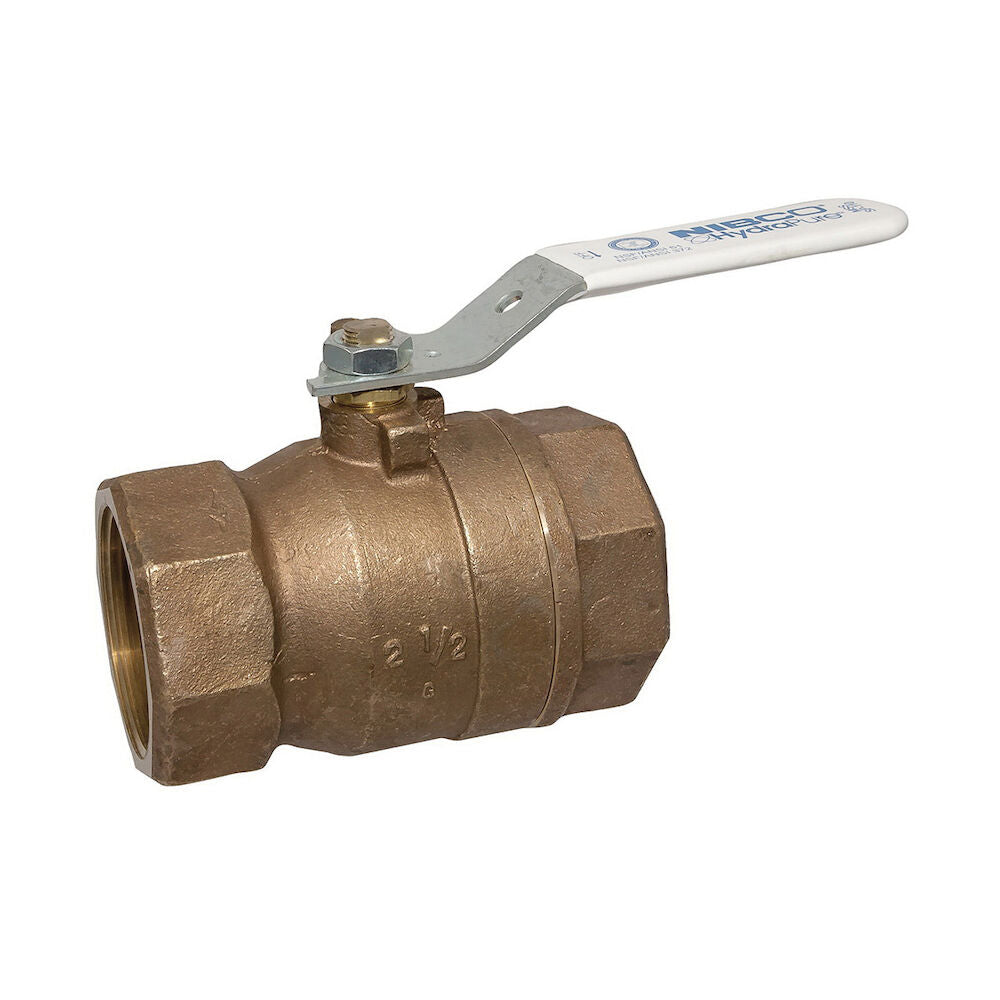

NIBCO NL950XE T-580-80-LF 2-1/2 in DZR Silicon Bronze Conventional Port NPT 600# Ball Valve

Product Description

The NIBCO NL950XE is a two-piece ball valve designed for efficient operation. This valve works with water and has a nominal size of two and a half inches. It features a conventional port and is rated for a pressure of six hundred psi.

• Max temperature rating of three hundred degrees Fahrenheit.
• Lead-free design for safety in drinking water applications.
• Silicon Bronze body, stem, and ball for durability.

Product Highlights

This valve is suitable for residential and commercial applications, ensuring reliability and longevity.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL950XE

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• End Style: NPT
• Inlet to Outlet Length: 5.43 in
• Media: Water
• Nominal Size: 2-1/2 in
• Orifice Size: 2 in
• Port Type: Conventional
• Pressure Rating: 600 psi
• Temperature Rating: 300 deg F
• Top to Inlet Center: 3.56 in
• Softgoods Material: PTFE
