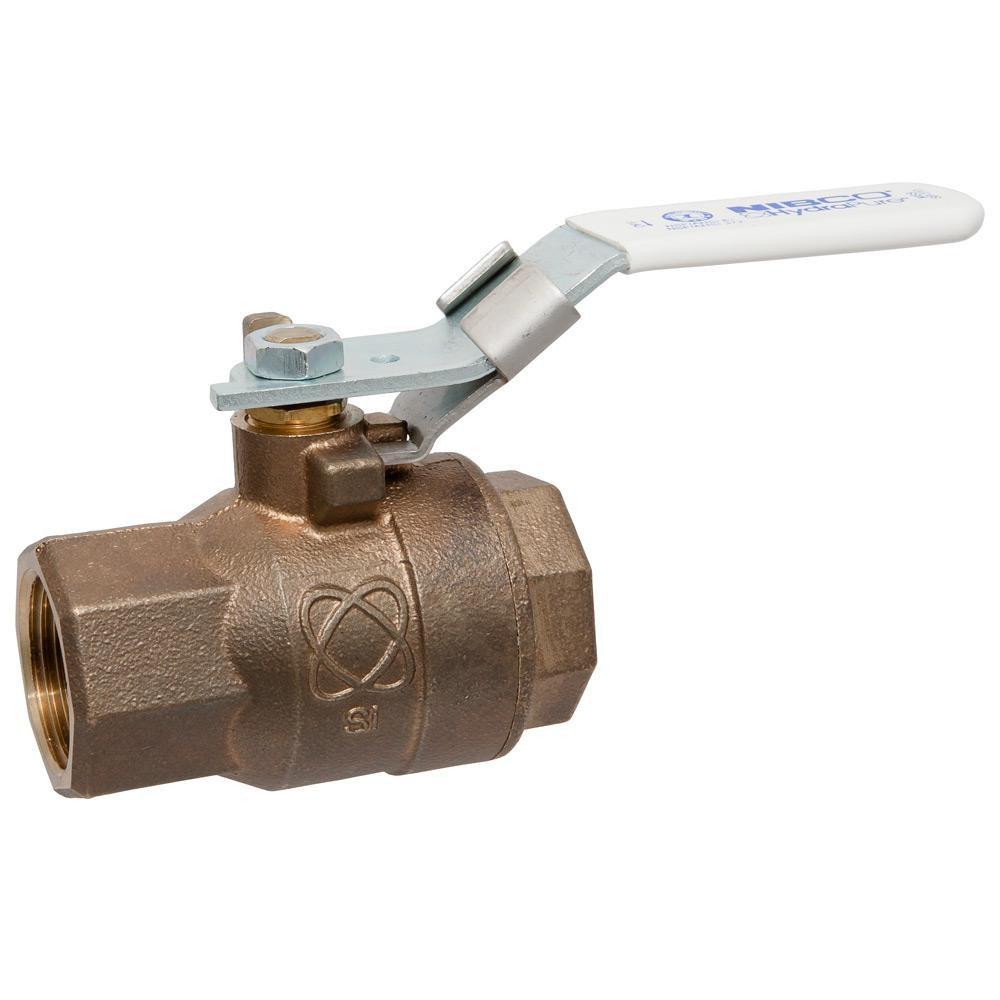

NIBCO NL950XA T-585-80-LF 1 in. Silicon Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL950XA is a T-585-80-LF one-inch silicon bronze full port NPT ball valve. It is designed for cold working pressure up to 600 psi. This valve is suitable for applications that deliver water for human consumption, making it ideal for residential and commercial use.

• Full port design for maximum flow
• Lead-free silicon bronze construction
• Standard lever handle for easy operation

Product Highlights

This ball valve features a blowout-proof stem and conforms to various standards, including MSS SP-110 and IAPMO/ANSI Z1157.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL950XA

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Pressure Rating: 600 psi
• Temperature Rating: 300 deg F
• Nominal Size: 1 in
• Connection Type: FNPT
• Inlet to Outlet Length: 3.34 in
• Top to Inlet Center: 2.48 in
• Trim Material: Silicon Bronze Stem
