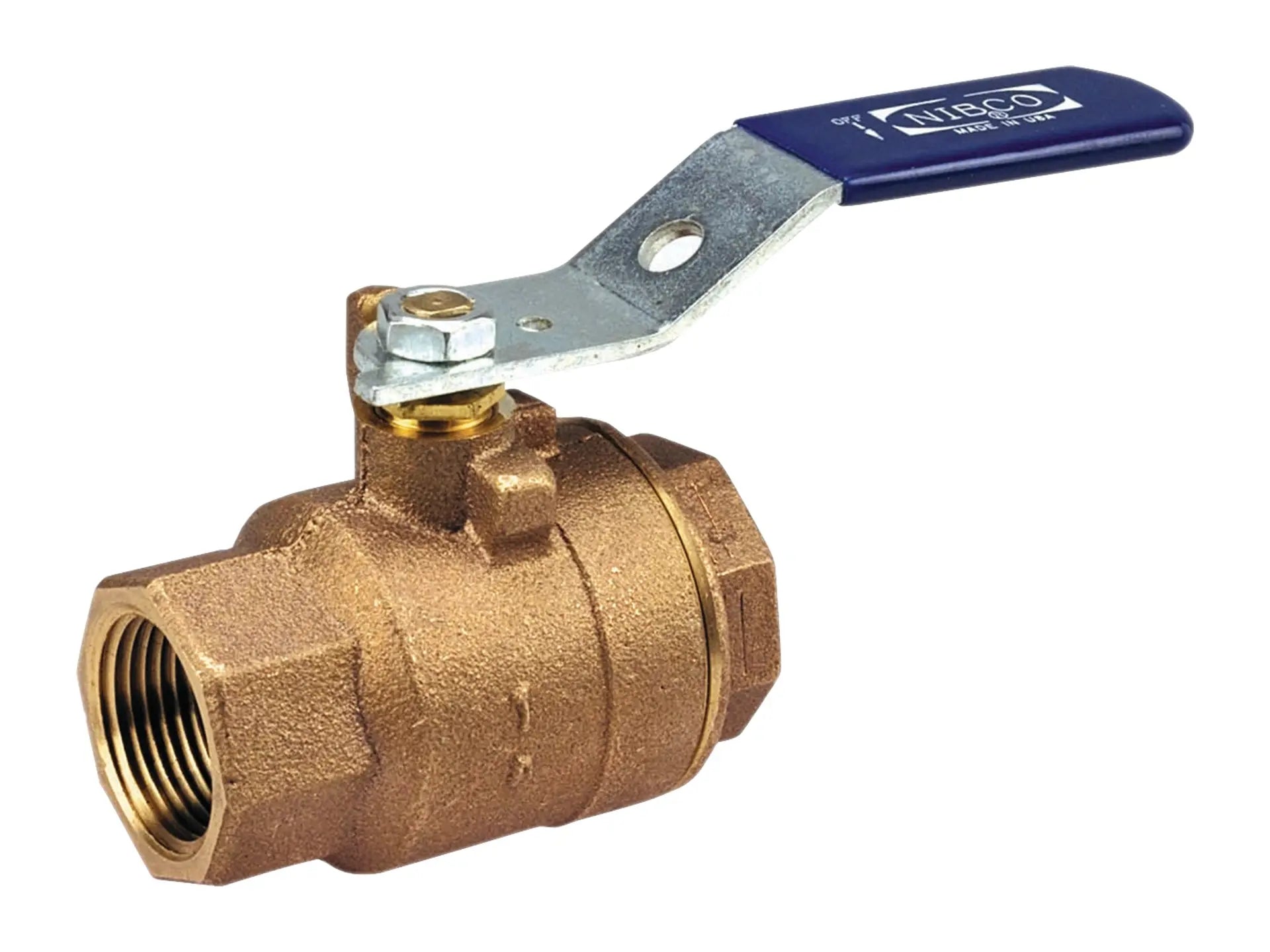

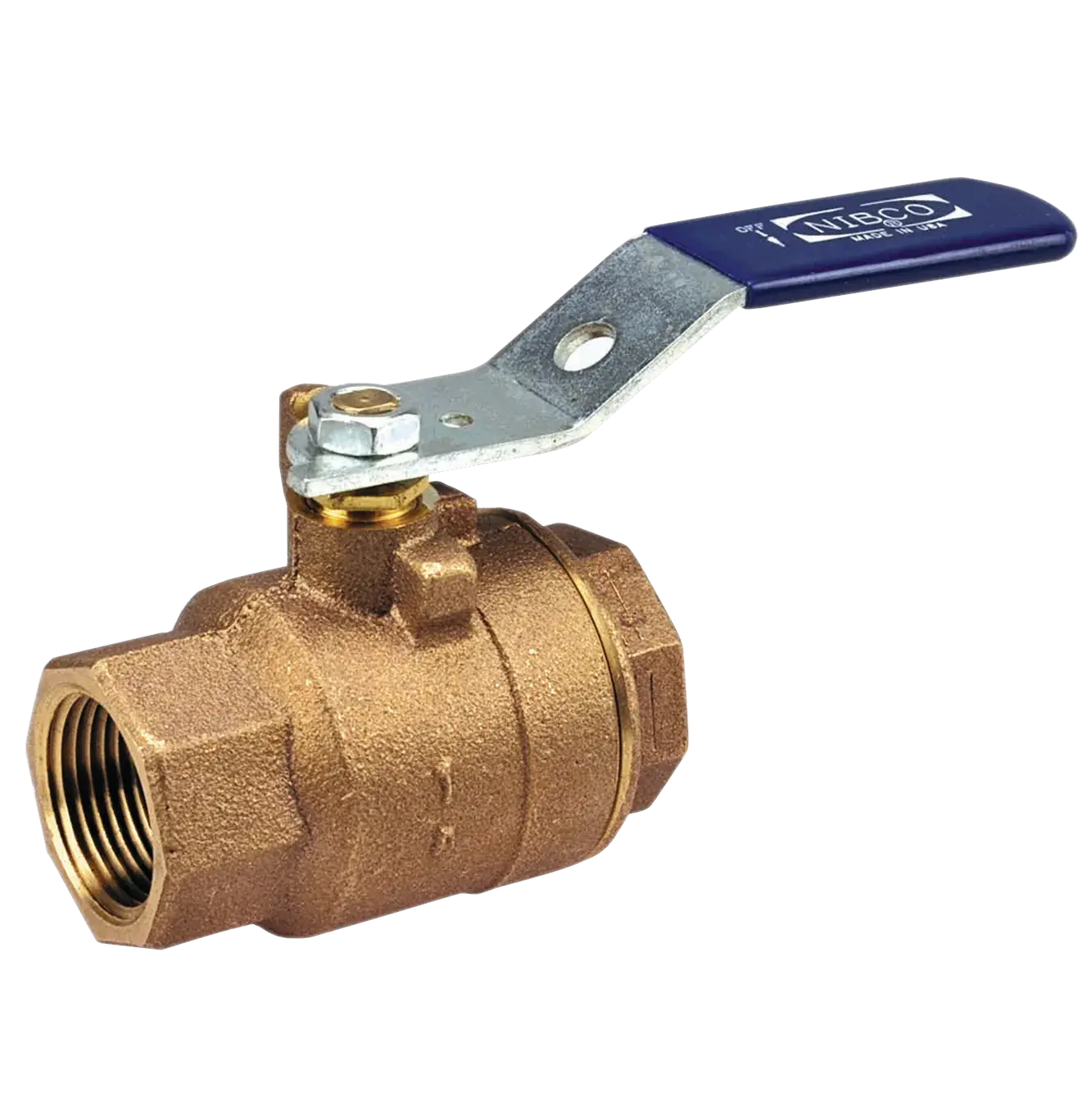

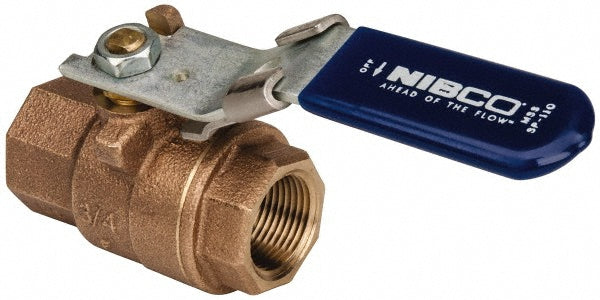

Nibco NL950L8 T-585-70 3/4 in. DZR Cast Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL950L8 T-585-70 is a bronze ball valve with threaded end connections. This two-piece, full port valve has a maximum temperature rating of 400°F and a pressure rating of 600 psi. It features a blowout-proof stem and dezincification-resistant construction. It is designed for use in various applications.

• Threaded end connections
• Max temperature rating 400°F
• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Dezincification resistant

Product Highlights

The NIBCO bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL950L8
• Country of Origin: UNITED STATES

Technical Specifications

• End Connections: Threaded
• Material: Cast Bronze
• Nominal Size: 3/4 in.
• Port Type: Full Port
• Pressure Rating: 600 psi
• UPC Code: 039923679871
• Type: Ball Valve
• Connection Type: T -- Female NPT Thread (FIPT)
• Seal Material: RPTFE (Reinforced)
• Seat Material: RPTFE (Reinforced)
• Stem Material: BRZ - Bronze
• Ball Material: Brass with Hard Chrome Plate
• Body Material: BRZ Cast Bronze
• Valve Operator: CS Locking Lever Handle
• Description: T58570LL 3/4 W/LOCK HDL
• eClass Classification: Bronze Ball Valves
• Weight: 1.386 lb
• Valve Type: Ball; Standard
• Valve Structure: 2-Piece
• End Connection: FNPT x FNPT
• Handle Type: Locking Lever
• Maximum Working Pressure (PSI - 3 Decimals): 600
• Steam Pressure Rating (psi): 150
• Trim Material: Bronze
• Maximum Working Pressure (bar): 41.40
• Maximum Working Temperature (F): 400
• Seat Seal Material: Reinforced Polytetrafluroethylene
• Number Of Pieces: 2
• UNSPSC Code: 40141607
• Country of Origin: UNITED STATES
• Valve pressure rating: 600 psi 41.4 bar non-shock cold working pressure
• Maximum temperature rating: 400°F
• Port: Full port
• Ball: Chrome plated brass ball
• Stem: Silicon bronze stem
• Stem Design: Blowout-proof stem
• Handle: Standard lever handle, optional NIB-SEAL®
• End connections: Threaded end connections
• Standard: Conforms to MSS SP-110
• Actuator Type: Standard Lever Handle
• Polished Chrome Brass: Polished Chrome Brass
• Cast Red Bronze: Cast Red Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.94 in
• Media: Air/Gas/Water
• Series: T-585-70
• Softgoods Material: RPTFE
• Temperature Rating: 400 deg F
• Top to Inlet Center: 2-1/4 in
• Silicon Bronze Stem: Silicon Bronze Stem
• 2-Piece: 2-Piece
• Manufacturer: NIBCO
• Part Number: NL950L8
• Model: T-585-70-LL
• Type of Valve: Ball
• Nominal Pipe Size: 3/4"
• Ball Body Type: Two-Piece
• Ball Operator: CS Locking Lever Handle
• Ball Port Style: Full Port
• Bronze Trim: Bronze Trim
• Turns Operations: Quarter-Turn
• Pressure Rating (SWP): 150 psi/10.3 Bar SWP
• Pressure Rating (CWP): 600 psi/41.4 Bar CWP
• Potable Water Code: Not LL Comp not intend potable
• Length: 6.3"
• Width: 3.1"
• Height: 1.7"
