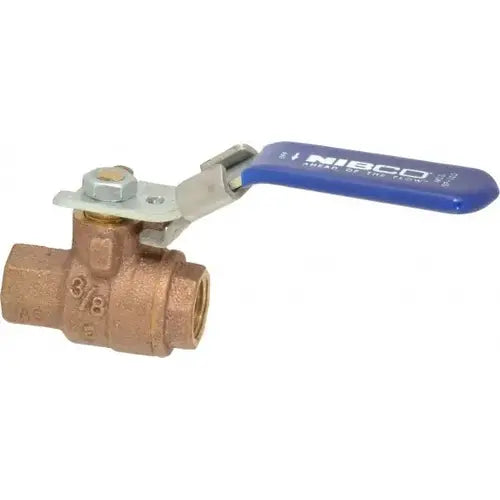

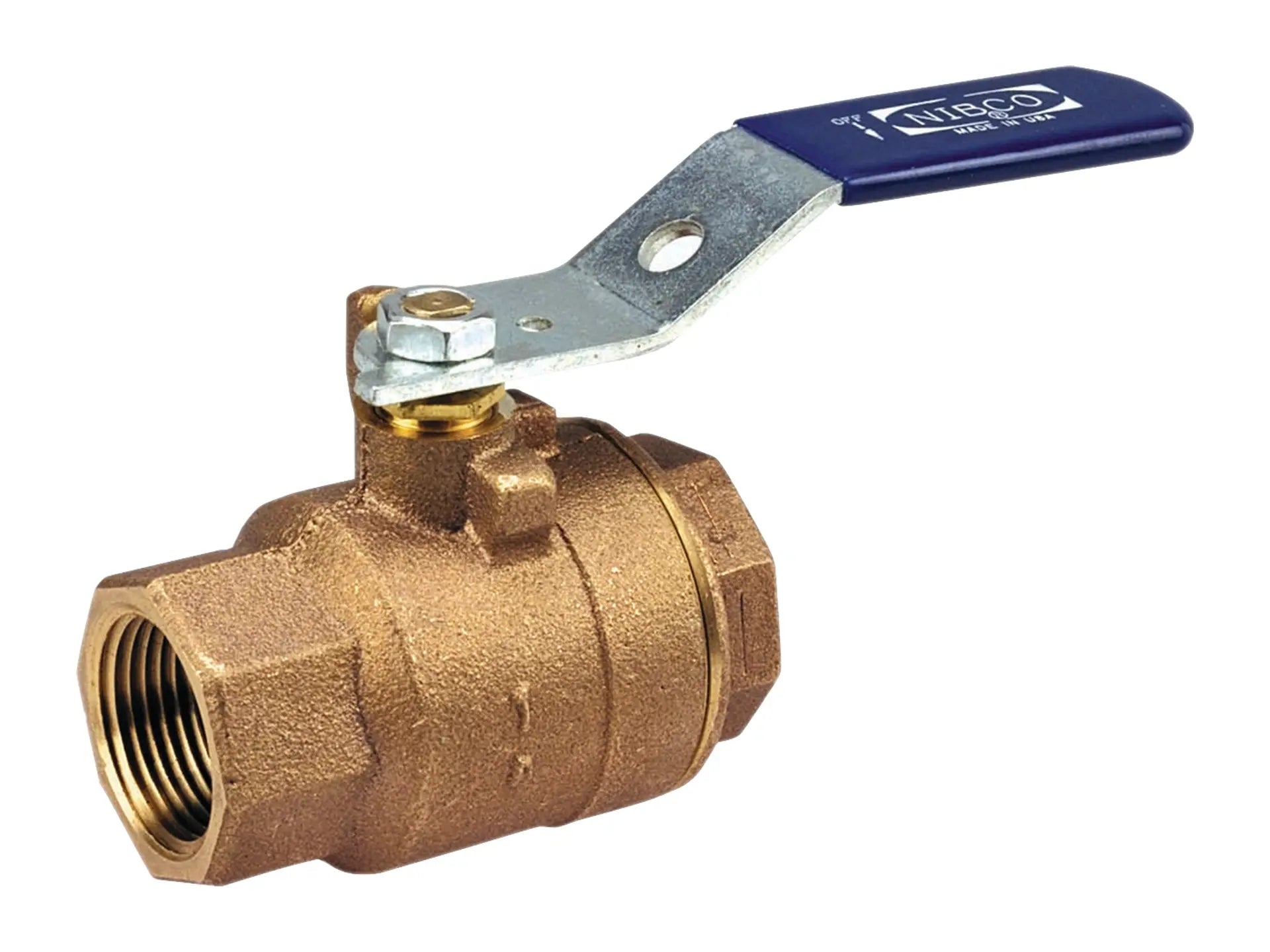

Nibco NL950L5 T-585-70 Two-Piece Bronze Ball Valve Full Port, Threaded

Product Description

The NIBCO NL950L5 bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features thread ends for easy installation. It provides bubble-tight shutoff at 600 psi and exhibits high chemical resistance properties. It is suitable for high pressure applications, HVAC, hot and cold domestic water, low pressure steam, and compressed air.

• Ease of operation with quarter-turn (90 degrees) open to close
• Two-piece valve
• Thread ends for easy installation

Product Highlights

The NIBCO bronze ball valve is a versatile and economical valve option for commercial, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL950L5
• Country of Origin: UNITED STATES

Technical Specifications

• UPC Code: 039923679857
• Type: Ball Valve
• Connection Type: T -- Female NPT Thread (FIPT)
• Valve Size: 3/8
• Seal Material: RPTFE (Reinforced)
• Seat Material: Reinforced Polytetrafluroethylene
• Stem Material: Bronze
• Ball Material: Brass with Hard Chrome Plate
• Body Material: Bronze
• Valve Operator: CS Locking Lever Handle
• Description: T58570LL 3/8 W/LOCK HDL
• eClass Classification: Bronze Ball Valves
• Valve Type: Standard Ball Valve
• Valve Structure: 2-Piece
• End Connection: FNPT x FNPT
• Port Type: Full
• Handle Type: Locking Lever
• Maximum Working Pressure (PSI - 3 Decimals): 600.00
• Steam Pressure Rating (psi): 150
• Trim Material: Bronze
• Maximum Working Pressure (bar): 41.40
• Maximum Working Temperature (F): 400
• Number Of Pieces: 2
• UNSPSC Code: 40141607
• Country of Origin: UNITED STATES
• Manufacturer: NIBCO
• Part Number: NL950L5
• Model: T-585-70-LL
• Series: T-585-70
• Nominal Pipe Size: 3/8"
• Material: Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Locking Lever Handle
• Ball Port Style: Full Port
• Ball Stem Material: BRZ - Bronze
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
• Pressure Rating (SWP): 150 psi/10.3 Bar SWP
• Pressure Rating (CWP): 600 psi/41.4 Bar CWP
• Potable Water Code: Not LL Comp not intend potable
• Maximum Working Pressure: 600psi, 41.4bar
• Wsp Rating: 150psi
