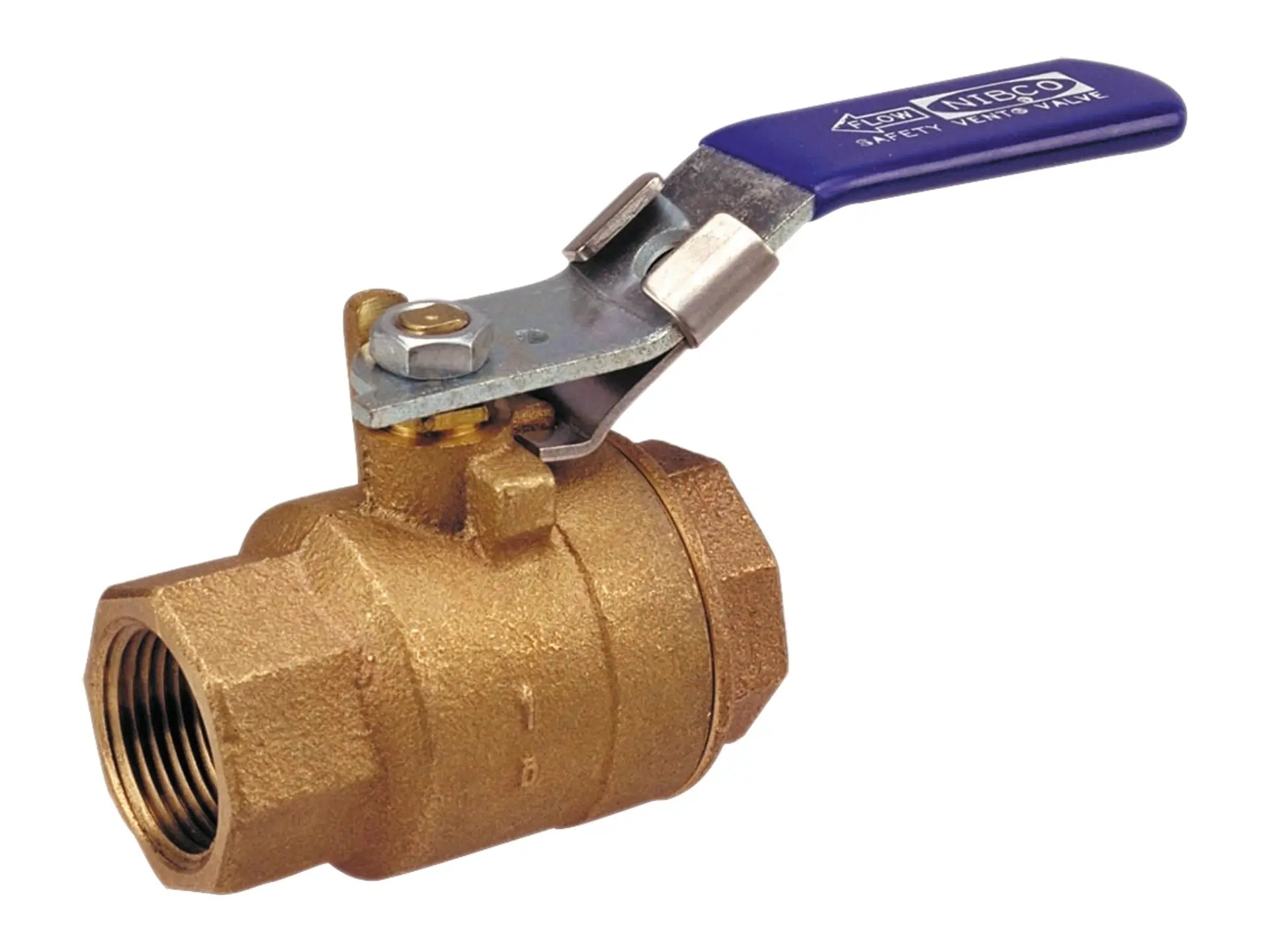

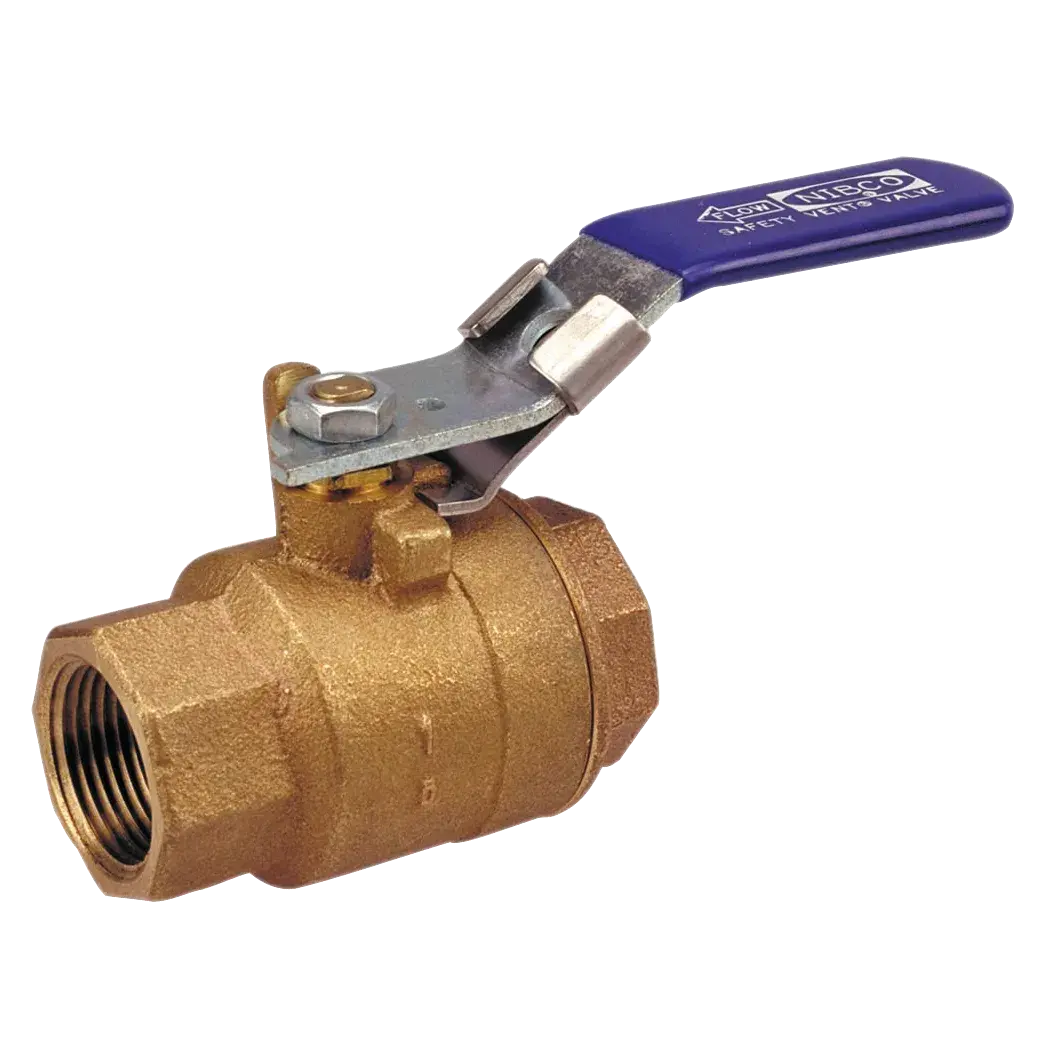

Nibco NL95078 T-585-70-SV 3/4 in. DZR Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL95078 bronze ball valve is designed with a safety-vent for compressed air line applications that require OSHA compliance. This valve provides ease of operation with a quarter-turn (90 deg) open to close and bubble-tight shutoff at 600 psi. The 2-piece valve features threaded ends for easy installation.

• Safety vent for compressed air lines
• Blowout-proof stem
• Dezincification resistant

Product Highlights

The NIBCO ball valve is dezincification resistant with threaded end connections and a locking lever handle. Conforms to OSHA 1910.147.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL95078

Technical Specifications

• Ball Material: Hard Chrome-Plated Brass
• Connection Size: 3/4 in
• Connection Type: FNPT
• Item Name: Ball Valve with Locking Lever Handle
• Material Specifications: ASTM B16, C36000, ASTM B371, C69430, C69300, ASTM B99, C65100, ASTM B124, C37700, ASTM B584, C84400
• Material: Bronze
• Model: T-585-70-SV
• Operator Type: Plastisol Coated Clear Chromate Zinc-Plated Steel Lever Handle
• Pressure Rating: 600 psi CWP Non-Shock
• Stem Material: Silicon Bronze
• Sub Brand: Safety-Vent
• Temperature Rating: 180 deg F
• Trim Material: Bronze
• Type: 2-Piece, Full-Port
• Standards/Certifications: OSHA 1910.147 compliant
• UPC: 039923680051
• Manufacturer: NIBCO
• Size: 0.75 Inch
• Series: T-585-70-SV Series
• Opening Size: 3/4 in
• Seat: Reinforced PTFE
• Body Material: Bronze
• Ball: Brass
• Stem: Silicon Bronze B371 Alloy C69430 or C69300 or B99 Alloy C65100
• Construction: 2-Piece
• Packing: PTFE
• Actuation/Operator: Carbon Steel Locking Lever Handle
• Trim: Bronze
• Handle Material: Steel
• Valve Size: 3/4
• Valve Operator: CS Locking Lever Handle
• Turns/Operation: Quarter-Turn
