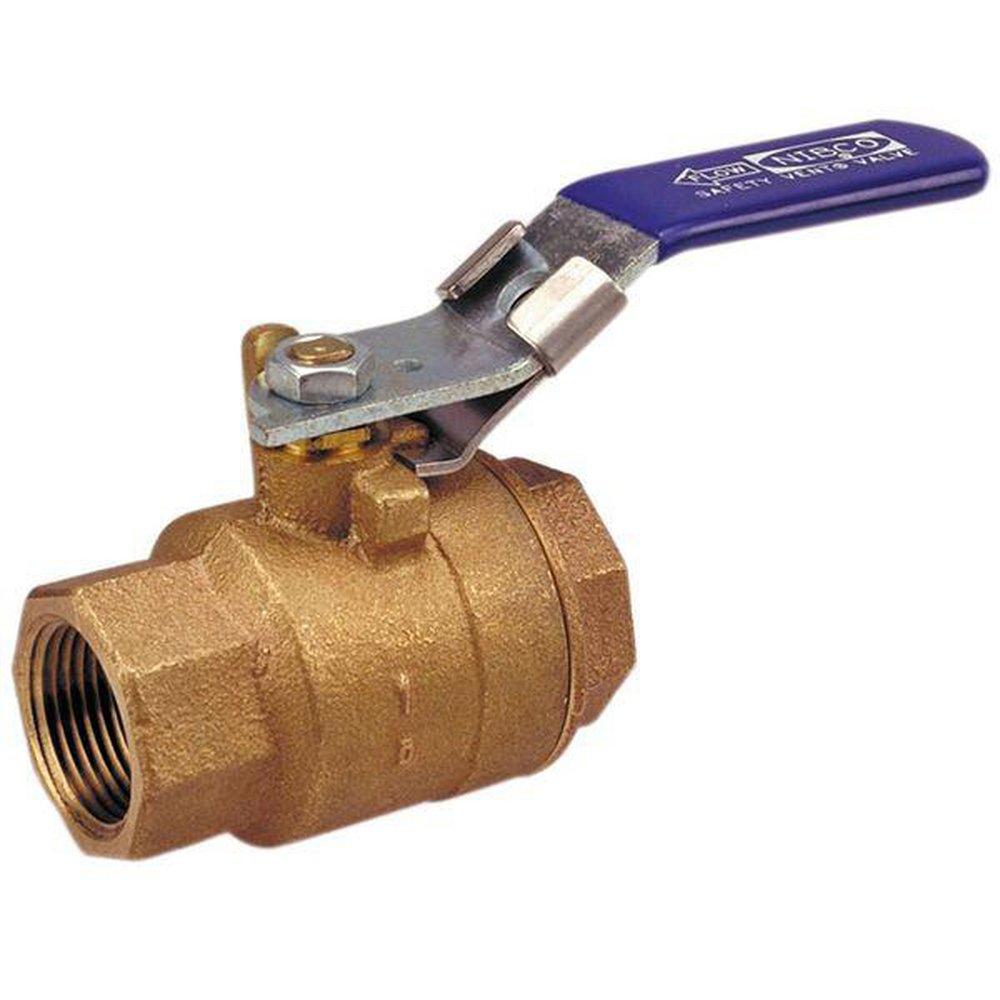

NIBCO NL95078 T-585-70-SV 3/4 in DZR Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL95078 is a 3/4 inch DZR bronze full-port NPT ball valve. It has a pressure rating of six hundred psi and is designed for use in various compressed air line applications. This valve features a safety-vent for compliance with OSHA standards. The blowout-proof stem ensures reliability. The valve's design allows for easy operation with a locking lever handle.

• Pressure rating of 600 psi for non-shock cold working pressure.
• Safety-vent feature for compressed air lines.
• Dezincification resistant materials used in construction.

Product Highlights

This valve is ideal for compressed air applications and can provide a secure shutoff.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: T-585-70-SV

Technical Specifications

• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Body Material: Cast Red Bronze
• Ball Material: Chrome Plated Brass
• Temperature Rating: 180 deg F
• Actuator Type: Locking Lever
• Pressure Rating: 600 psi CWP Non-Shock
• Media: Air/Gas
• End Style: FNPT
• Trim Material: Silicon Bronze Stem
• Inlet to Outlet Length: 2.94 in
• Top to Inlet Center: 2-1/4 in
