NIBCO NL9502D T-580-70-UL 2 in. Bronze Conventional Port Threaded 600# Ball Valve

Product Description

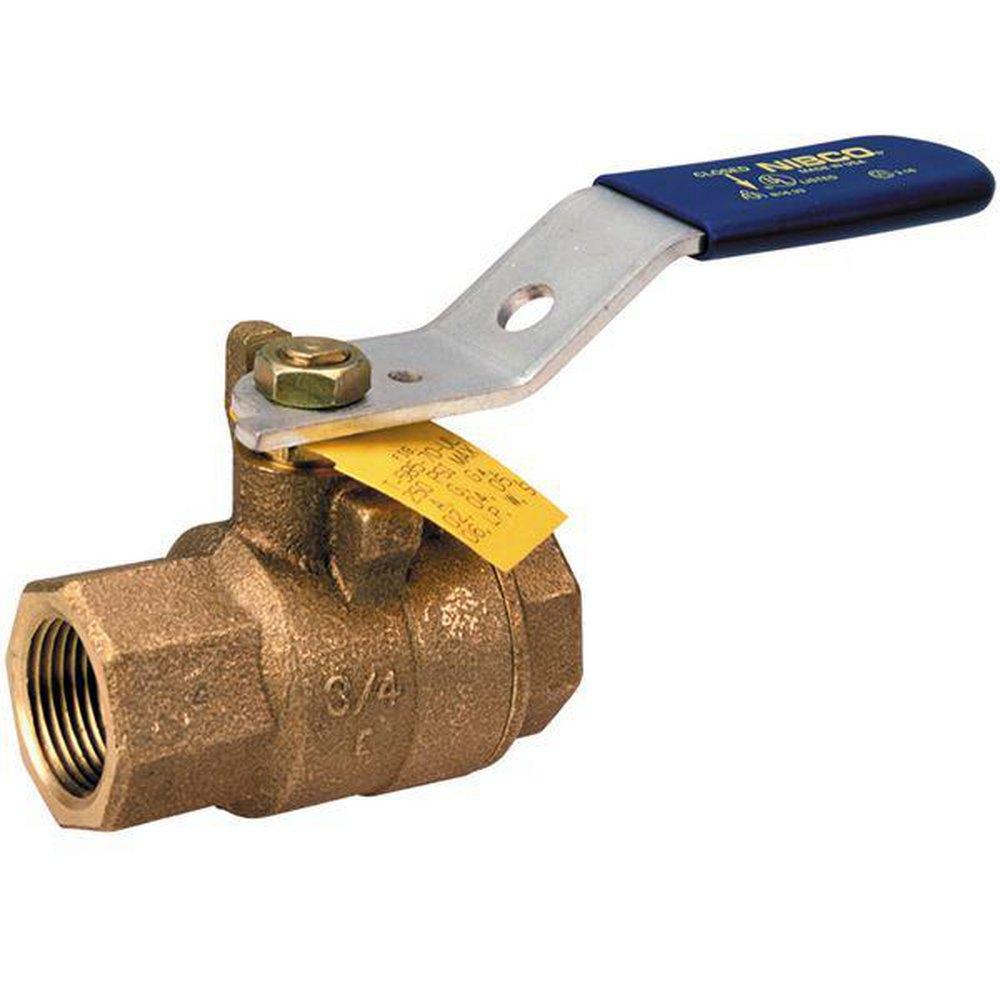

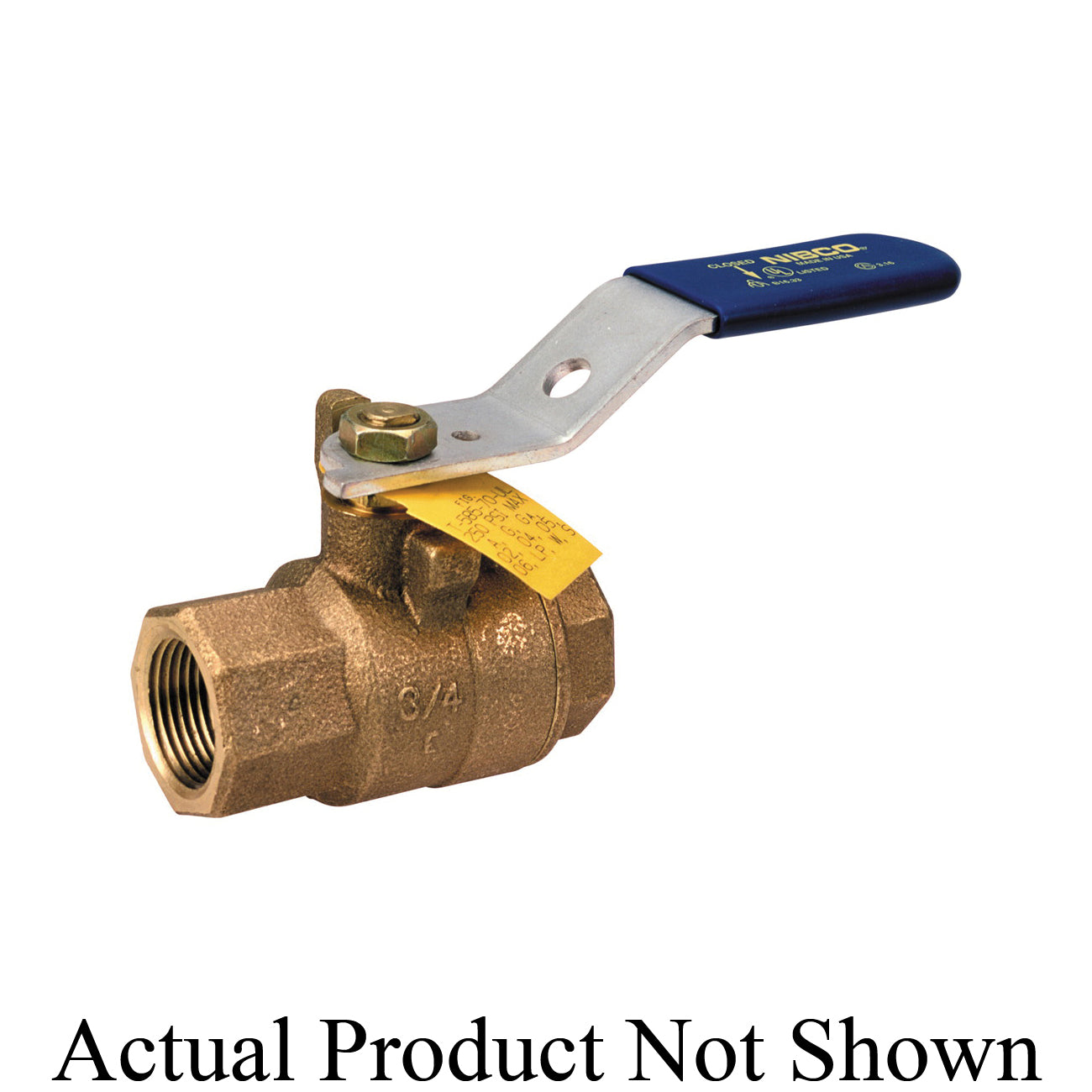

The NIBCO NL9502D is a two-piece bronze ball valve designed for effective operation. This valve offers a quarter-turn for opening and closing, making it easy to control flow. It is equipped with threaded end connections for straightforward installation. This product is suitable for a range of applications, including commercial and industrial use.

• Standard lever handle actuator for ease of use
• Made from bronze with brass ball
• Pressure rating of two hundred fifty psi

Product Highlights

This valve is recognized for its reliability and performance in various fluid handling applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL9502D

Technical Specifications

• Type: 2-Piece
• Nominal Size: 2 inches
• Orifice Size: 1.5 inches
• Body Material: Bronze
• Ball Material: Brass
• Media: Gasoline/LP Gas/Fuel Oil/Flammable Fluids
• End Style: FNPT
• Pressure Rating: 250 psi
• Top to Inlet Center: 3.16 inches
• Inlet to Outlet Length: 4.63 inches
• Softgoods Material: PTFE
• Trim Material: Silicon Bronze Stem
• Domestic/Import: Domestic
• Series: T-580-70-UL
