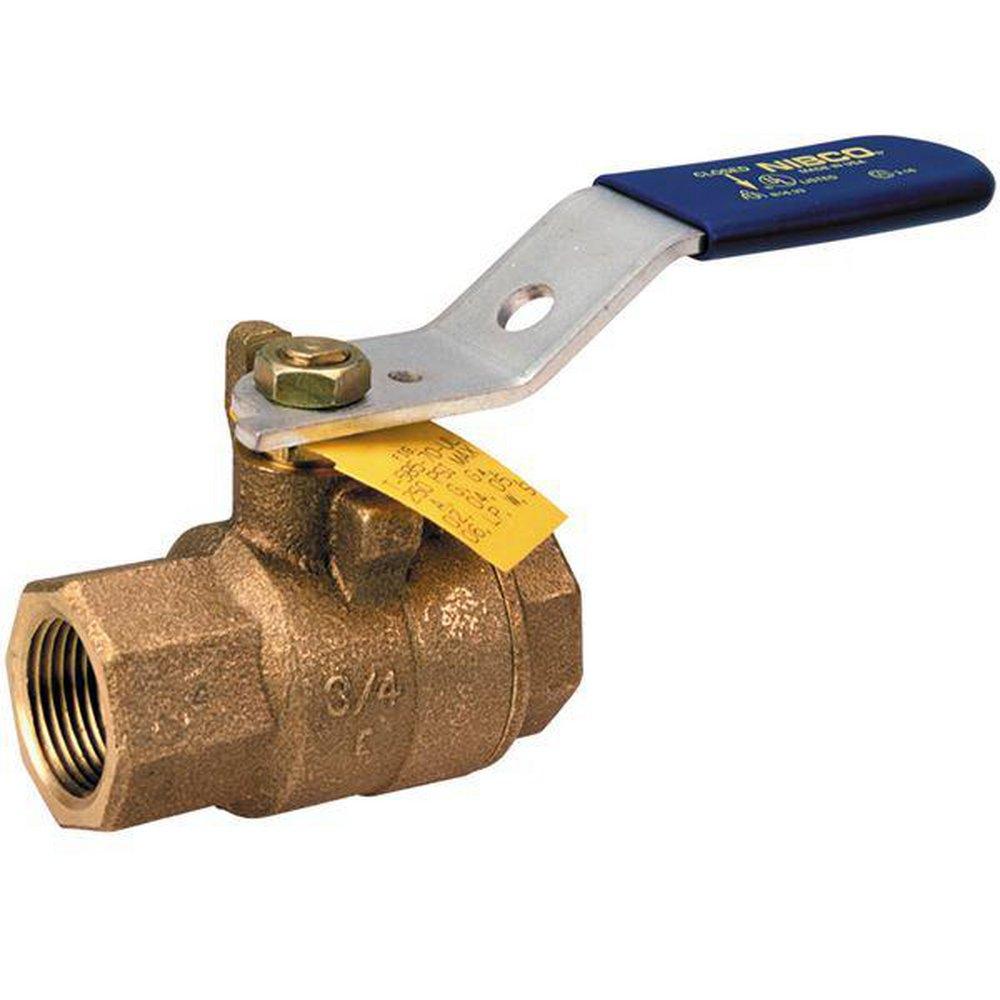

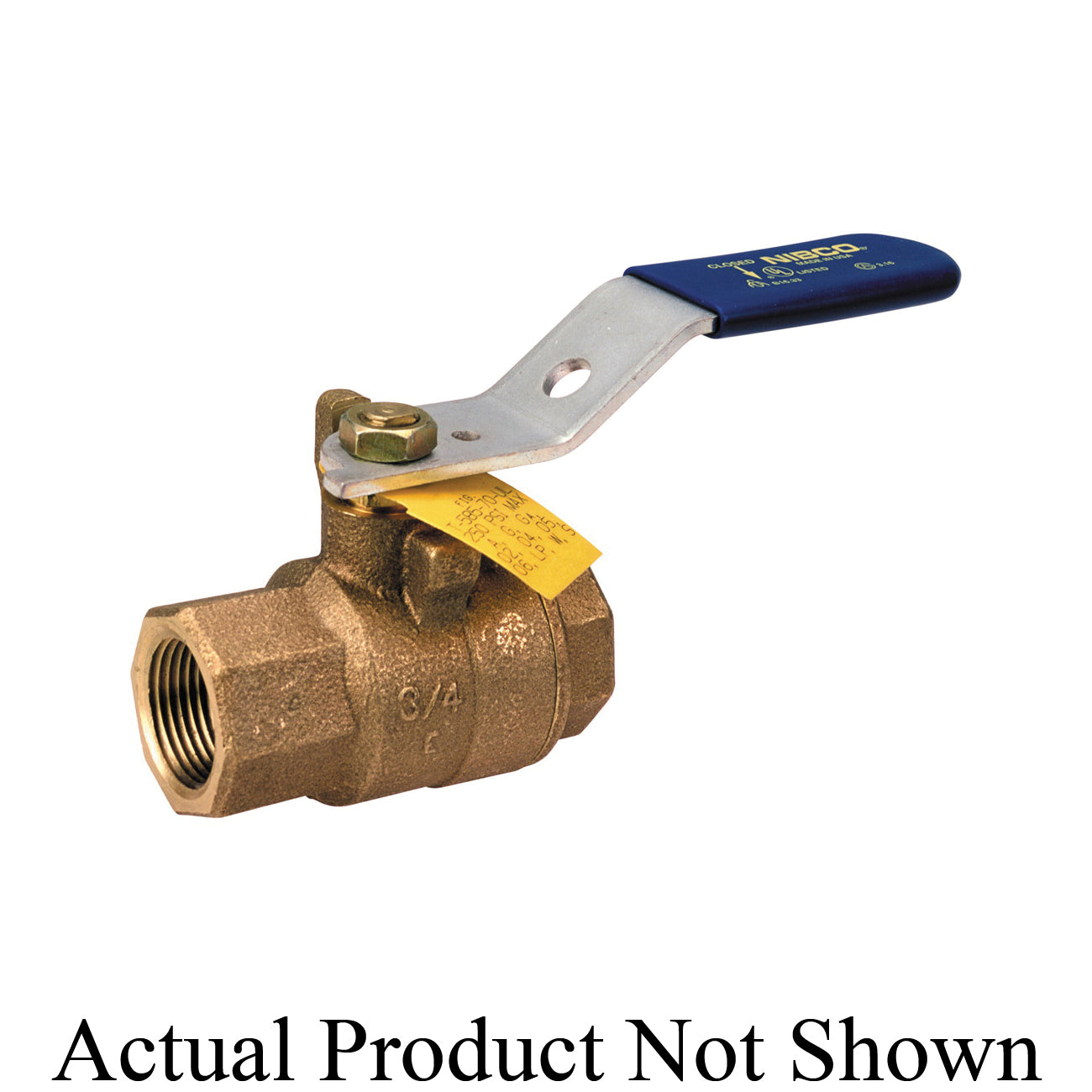

NIBCO NL9502C T-580-70-UL 1-1/2 in Bronze Conventional Port Threaded 600# Ball Valve

Product Description

The NIBCO NL9502C is a two-piece ball valve designed for effective operation in various applications. This valve features a nominal size of one and one-half inches with FNPT end connections for ease in installation. The construction includes a bronze body and silicon bronze trim, providing durability while resisting dezincification. The valve is rated for a pressure of two hundred fifty psi, suitable for use with gasoline, LP gas, fuel oil, and other flammable fluids.

• Two-piece design for easy maintenance
• Blowout-proof stem for enhanced durability
• Polished chrome brass ball for long-lasting use

Product Highlights

This NIBCO ball valve is ideal for commercial, residential, and industrial installations requiring reliable performance.

Product Information

Standard Information

• Brand: NIBCO INC
• MPN: NL9502C

Technical Specifications

• Type: 2-Piece
• Media: Gasoline/LP Gas/Fuel Oil/Flammable Fluids
• Finish: Polished Chrome
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/4 in
• Pressure Rating: 250 psi
• Series: T-580-70-UL
• Softgoods Material: PTFE
• Top to Inlet Center: 3 in
• Inlet to Outlet Length: 4.31 in
• Actuator Type: Standard Lever Handle
• Ball Material: Brass
• Body Material: Bronze
• Domestic/Import: Domestic
