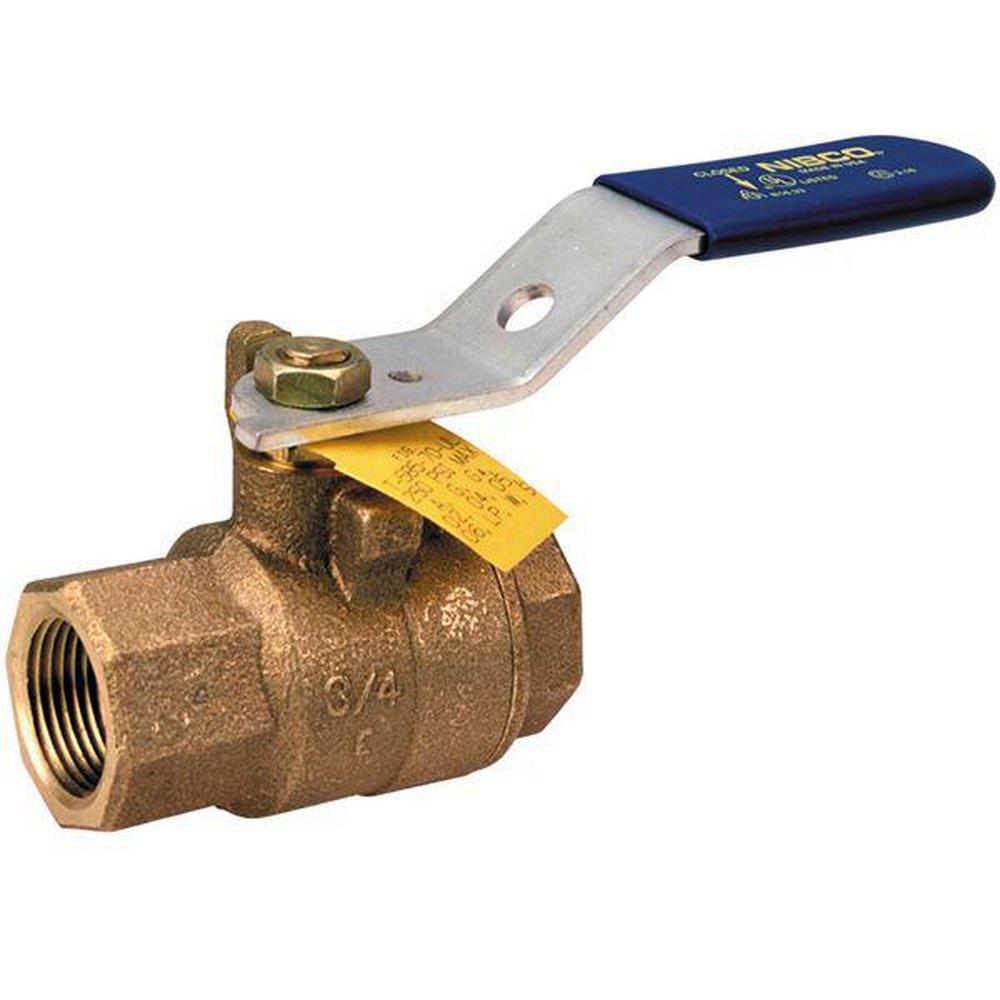

NIBCO NL9502B T-580-70-UL 1-1/4 in. Bronze Conventional Port NPT 250# Ball Valve

Product Description

The NIBCO NL9502B is a durable, two-piece ball valve designed for reliable service in various applications. This valve features a one and one-fourth inch nominal size and is equipped with FNPT end connections. It has a pressure rating of two hundred fifty psi, making it suitable for handling gasoline, LP gas, fuel oil, and other flammable fluids.

• Two-piece design for easy installation
• Dezincification resistant for enhanced durability
• Standard lever handle for quick quarter-turn operation

Product Highlights

This valve is ideal for commercial, industrial, and residential applications, ensuring a secure seal under pressure and easy operation.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NL9502B

Technical Specifications

• Nominal Size: 1-1/4 in
• Orifice Size: 1 in
• Body Material: Bronze
• Ball Material: Brass
• Pressure Rating: 250 psi
• End Style: FNPT
• Actuator Type: Standard Lever Handle
• Trim Material: Silicon Bronze Stem
• Softgoods Material: PTFE
• Inlet to Outlet Length: 3.94 in
• Top to Inlet Center: 2.63 in
• Media: Gasoline/LP Gas/Fuel Oil/Flammable Fluids
• Series: T-580-70-UL
• Finish: Polished Chrome
• Type: 2-Piece
