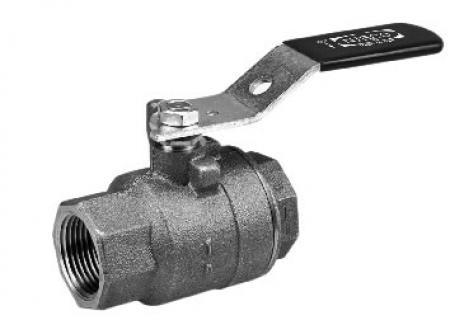

NIBCO NL9502A T-585-70-UL 1 in. Bronze Full Port Threaded 250# Ball Valve

Product Description

The NIBCO NL9502A is a 1 inch bronze full port threaded ball valve. This valve is designed for high performance in various applications, especially for gas and flammable fluids. It has a pressure rating of 250 psi and is suitable for use with natural gas and LP gas. The valve features blowout-proof stem technology for reliability and ease of operation.

• Standard lever handle for easy operation
• Dezincification resistant construction
• Chrome plated brass ball with silicon bronze stem

Product Highlights

This valve meets UL842 standards for safety and is not approved for drinking water applications after January 3, 2014. Its streamlined design ensures a long service life while providing efficient flow control.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL9502A

Technical Specifications

• Pressure Rating: 250 psi
• Nominal Size: 1 inch
• Body Material: Cast red bronze
• Ball Material: Chrome plated brass
• Stem Material: Silicon bronze
• End Style: FNPT
• Temperature Rating: 180 degrees Fahrenheit
• Inlet to Outlet Length: 3.34 inches
• Top to Inlet Center: 2.38 inches
• Series: T-585-70-UL
