NIBCO NL95028 T58570UL 3/4 UL 842 AGA/CGA

Product Description

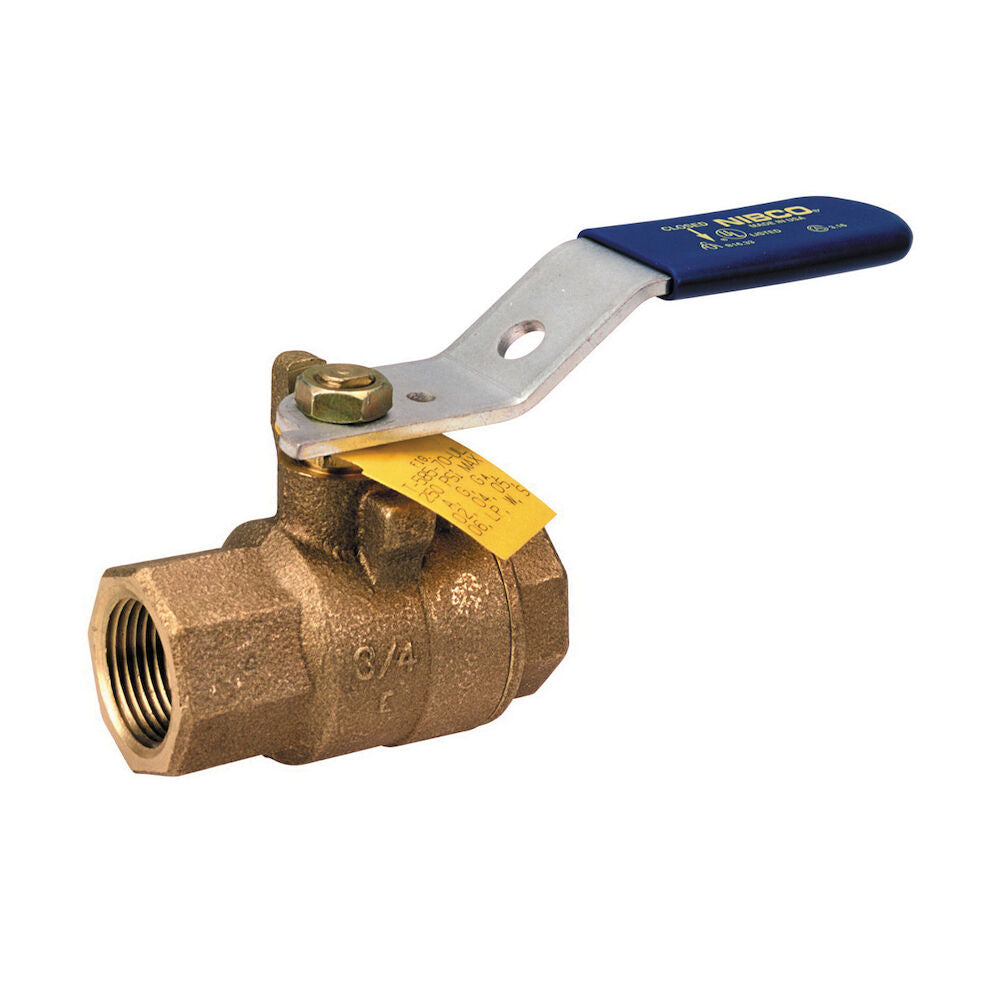

The NIBCO NL95028 is a T58570UL ball valve designed for use in air and gas applications. This two-piece valve features a standard lever handle and a polished chrome brass ball. It is rated for up to 250 psi and can operate at temperatures up to 180 degrees Fahrenheit.

• Media Compatibility: Suitable for air and flammable gases.
• Pressure Rating: 250 psi, compliant with UL 842.
• Construction: Made with a cast red bronze body and PTFE softgoods.

Product Highlights

This valve is designed for natural and LP gas applications. It features a blowout-proof stem and is certified to meet ANSI/ASME standards, making it ideal for high-pressure environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-585-70-UL

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Polished Chrome Brass
• Body Material: Cast Red Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.94 in
• Media: Air/Gas
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 250 psi
• Temperature Rating: 180 deg F
• Top to Inlet Center: 2-1/4 in
• Trim Material: Silicon Bronze Stem
