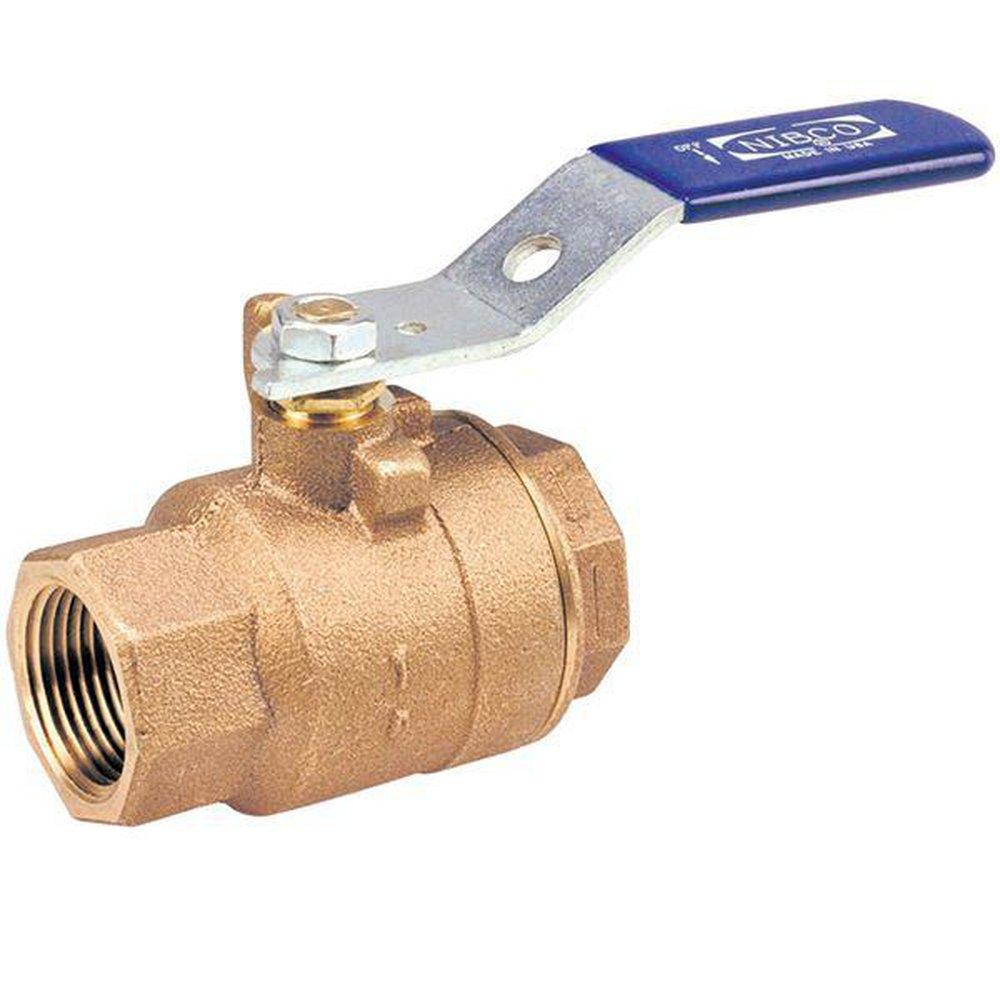

NIBCO NL9500E T-580-70 2-1/2 in DZR Cast Bronze Conventional Port NPT 600# Ball Valve

Product Description

The NIBCO NL9500E is a two-piece ball valve designed for various applications. It features a conventional port and is suitable for air, gas, and water media. With a pressure rating of 600 psi and a temperature rating of four hundred degrees Fahrenheit, this valve meets high operating standards.

• Pressure rating of six hundred psi
• Bronze body construction
• Dezincification resistant

Product Highlights

The NIBCO NL9500E offers reliable performance and ease of operation. Its standard lever handle allows for a quick quarter turn from open to closed.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 2-Piece

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Polished Chrome Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 5.84 inches
• Media: Air/Gas/Water
• Nominal Size: 2-1/2 inches
• Orifice Size: 2 inches
• Port Type: Conventional
• Pressure Rating: 600 psi
• Series: T-580-70
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 3-1/2 inches
• Trim Material: Silicon Bronze Stem
