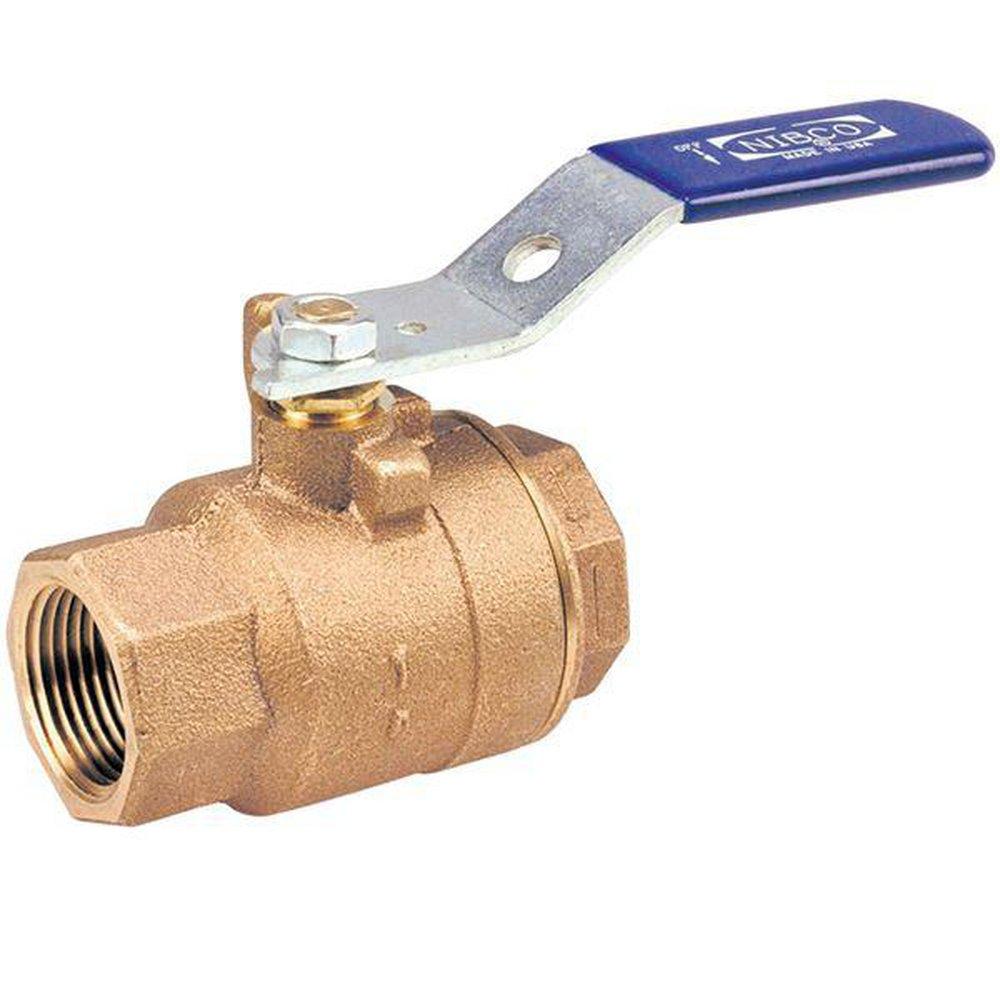

NIBCO NL9500C T-580-70 1-1/2 in. DZR Cast Bronze Conventional Port NPT 600 Ball Valve

Product Description

The NIBCO NL9500C T-580-70 1-1/2 in. DZR Cast Bronze Conventional Port NPT 600 Ball Valve is a reliable component for various fluid control applications. Rated at 600 psi, this valve is designed for non-shock cold working pressure situations.

• Maximum temperature rating: 400 degrees Fahrenheit
• Constructed from dezincification-resistant materials
• Features a blowout-proof stem

Product Highlights

This valve is ideal for air, gas, and water media. It includes a standard lever handle and polished chrome brass ball. It also complies with MSS SP-110 standards.

Product Information

Standard Information

• Brand: NIBCO
• Model: T-580-70

Technical Specifications

• Nominal Size: 1-1/2 in.
• Orifice Size: 1-1/4 in.
• Pressure Rating: 600 psi
• Temperature Rating: 400 degrees Fahrenheit
• Body Material: Bronze
• Ball Material: Polished Chrome Brass
• Trim Material: Silicon Bronze Stem
• Softgoods Material: PTFE
• Inlet to Outlet Length: 4.31 in.
• Top to Inlet Center: 3 in.
• Port Type: Conventional
• End Style: FNPT
• Actuator Type: Standard Lever Handle
• Media: Air/Gas/Water
• Domestic/Import: Domestic
• Series: T-580-70
