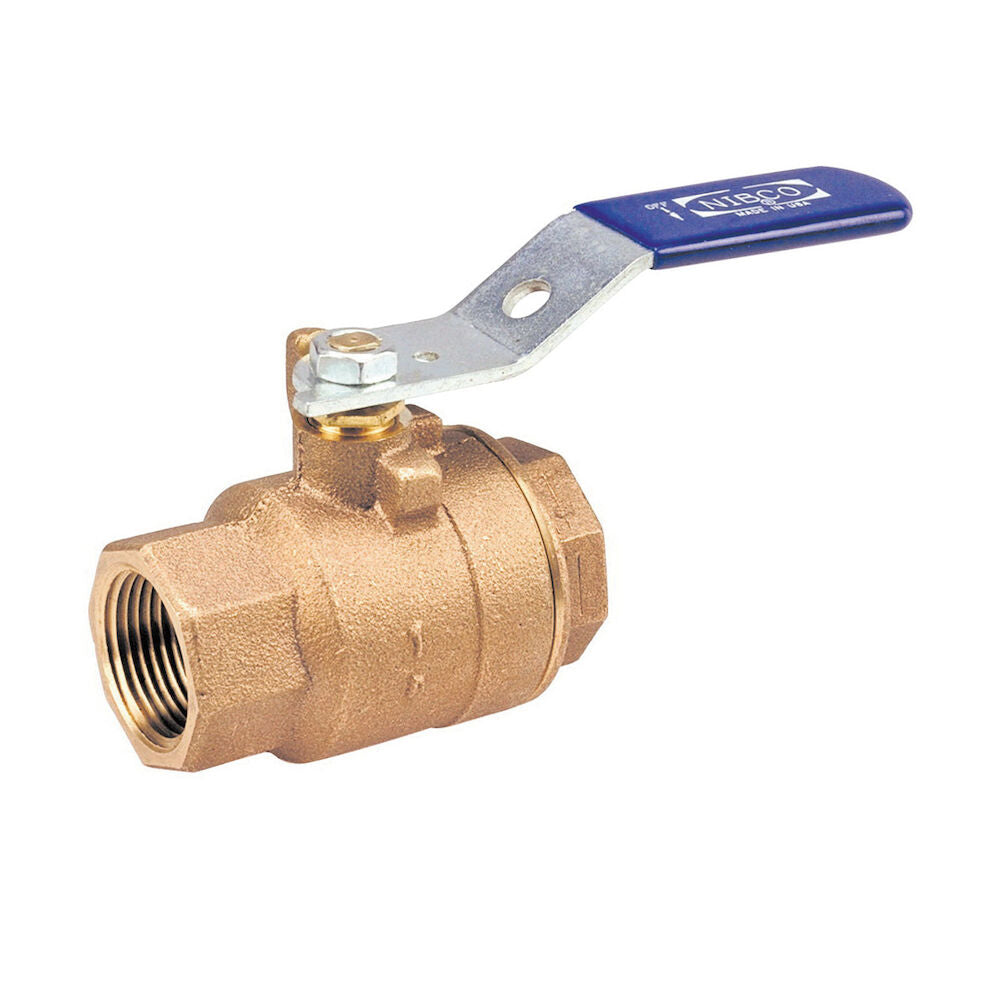

NIBCO NL9500B T-580-70 1-1/4 in. DZR Cast Bronze Conventional Port NPT 600# Ball Valve

Product Description

The NIBCO NL9500B is a two-piece ball valve designed for durable performance in a variety of applications. This valve has a nominal size of one and one-quarter inches and features FNPT end connections that facilitate easy installation. It boasts a pressure rating of six hundred psi and can handle temperatures up to four hundred degrees Fahrenheit.

• Standard lever handle for easy operation
• Dezincification-resistant bronze body
• Blowout-proof stem for safe operation

Product Highlights

This valve is suitable for air, gas, and water applications, making it versatile in various mechanical and industrial uses. Designed for demanding conditions, this valve is backed by a five-year limited warranty from NIBCO.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL9500B

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Polished Chrome Brass
• Body Material: Bronze
• End Style: FNPT
• Inlet to Outlet Length: 3.94 inches
• Media: Air/Gas/Water
• Nominal Size: 1-1/4 inches
• Orifice Size: 1 inch
• Port Type: Conventional
• Pressure Rating: 600 psi
• Temperature Rating: 400 degrees Fahrenheit
• Series: T-580-70
• Softgoods Material: PTFE
• Top to Inlet Center: 2.63 inches
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
