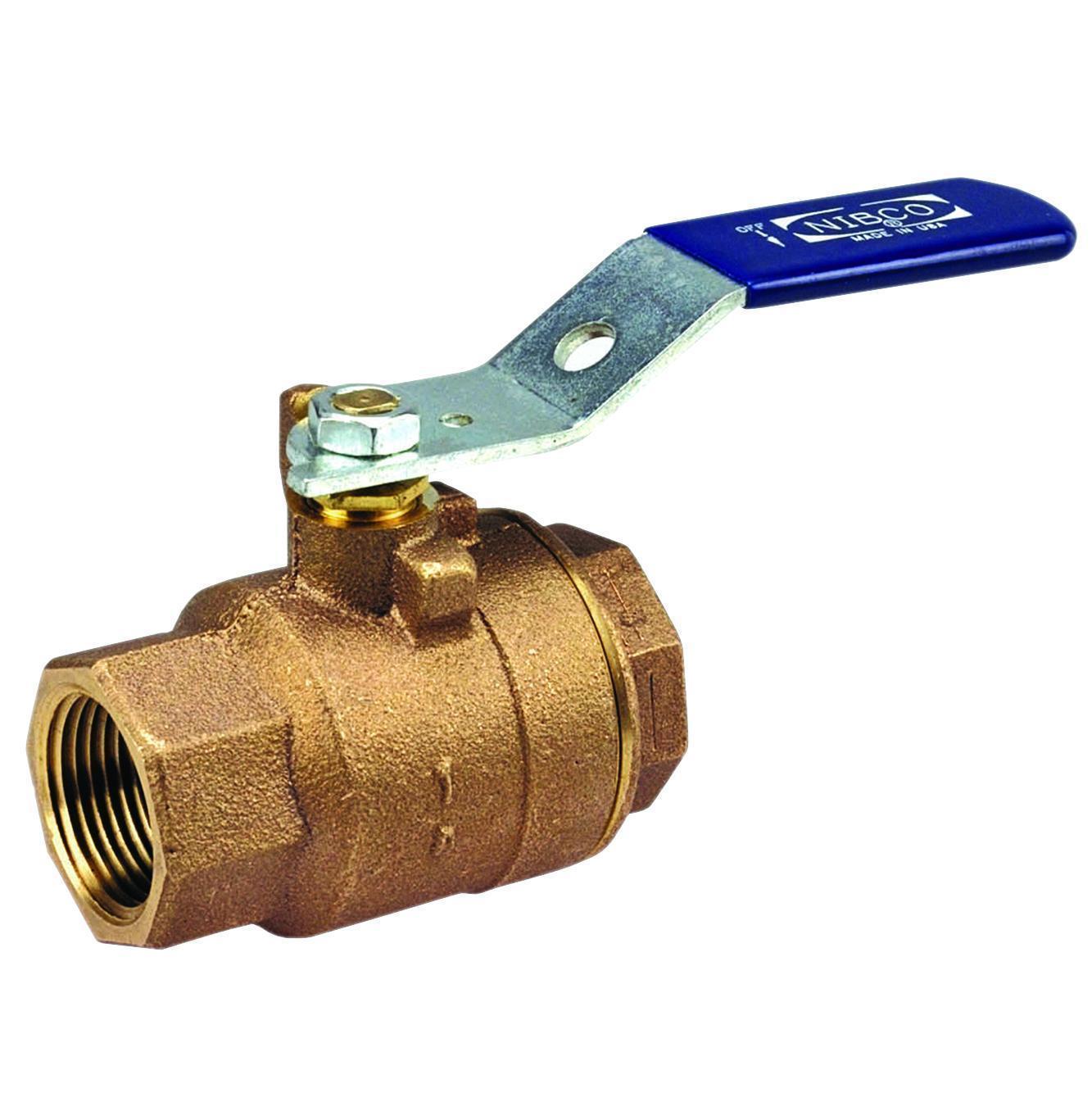

NIBCO NL9500A T-585-70 2-Piece Ball Valve 1 in Nominal FNPT End Style Cast Red Bronze Body Full Port PTFE Softgoods

Product Description

The NIBCO NL9500A is a 2-piece ball valve designed for various applications. This valve has a nominal size of one inch with FNPT end style, and it features a cast red bronze body. The NIBCO NL9500A is suitable for use with air, gas, and water media at a pressure rating of 600 psi.

• Two-piece construction for durability and ease of installation
• Standard lever handle actuator for simple operation
• PTFE softgoods designed for chemical resistance

Product Highlights

The NIBCO NL9500A ball valve offers reliability in high pressure applications such as HVAC systems, hot and cold domestic water, low pressure steam, and compressed air. This valve features a blowout-proof stem and dezincification resistance.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL9500A

Technical Specifications

• Type: 2-Piece
• Media: Air/Gas/Water
• Nominal Size: 1 in
• Pressure Rating: 600 psi
• Temperature Rating: 400 degrees F
• End Style: FNPT
• Inlet to Outlet Length: 3.34 in
• Top to Inlet Center: 2.38 in
• Body Material: Cast Red Bronze
• Trim Material: Silicon Bronze Stem
• Softgoods Material: PTFE
