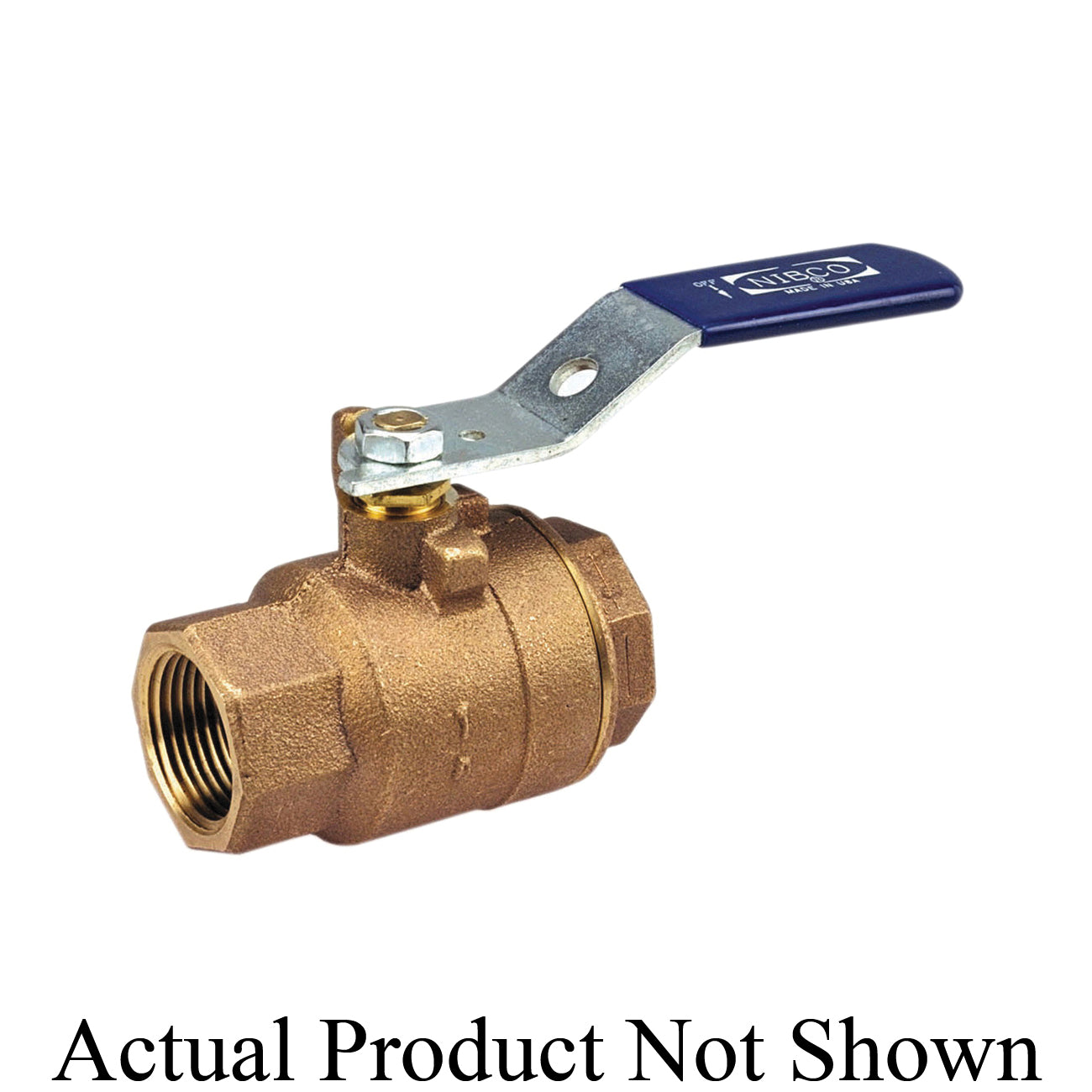

NIBCO NL95008 2-Piece Ball Valve 3/4 in Nominal FNPT End Style Full Port

Product Description

The NIBCO NL95008 is a reliable 2-piece ball valve designed for various applications, including HVAC and plumbing. It features a FNPT end style for easy connection and installation. This valve operates with a quarter-turn for efficient opening and closing. The construction consists of a cast red bronze body which ensures durability and resistance to dezincification. This valve supports a maximum working pressure of 600 psi and a temperature rating up to 400 degrees Fahrenheit.

• Full port design allows for maximum flow
• Standard lever handle for effortless operation
• Manufactured in the USA with a five years limited warranty

Product Highlights

Utilized extensively in commercial and industrial settings, this valve is suitable for a range of fluid types, including air, gas, and water. NIBCO ball valves are known for their versatility and reliability.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: NL95008

Technical Specifications

• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Body Material: Cast Red Bronze
• Ball Material: Polished Chrome Brass
• End Style: FNPT
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 2.94 in
• Top to Inlet Center: 2-1/4 in
• Actuator Type: Standard Lever Handle
• Softgoods Material: PTFE
